Garmin GPSMAP 1243xsv: Advanced Navigation with Superior Sonar Capabilities

• The Garmin 1243xsv chartplotter is designed for serious mariners who require an advanced, reliable navigation tool.

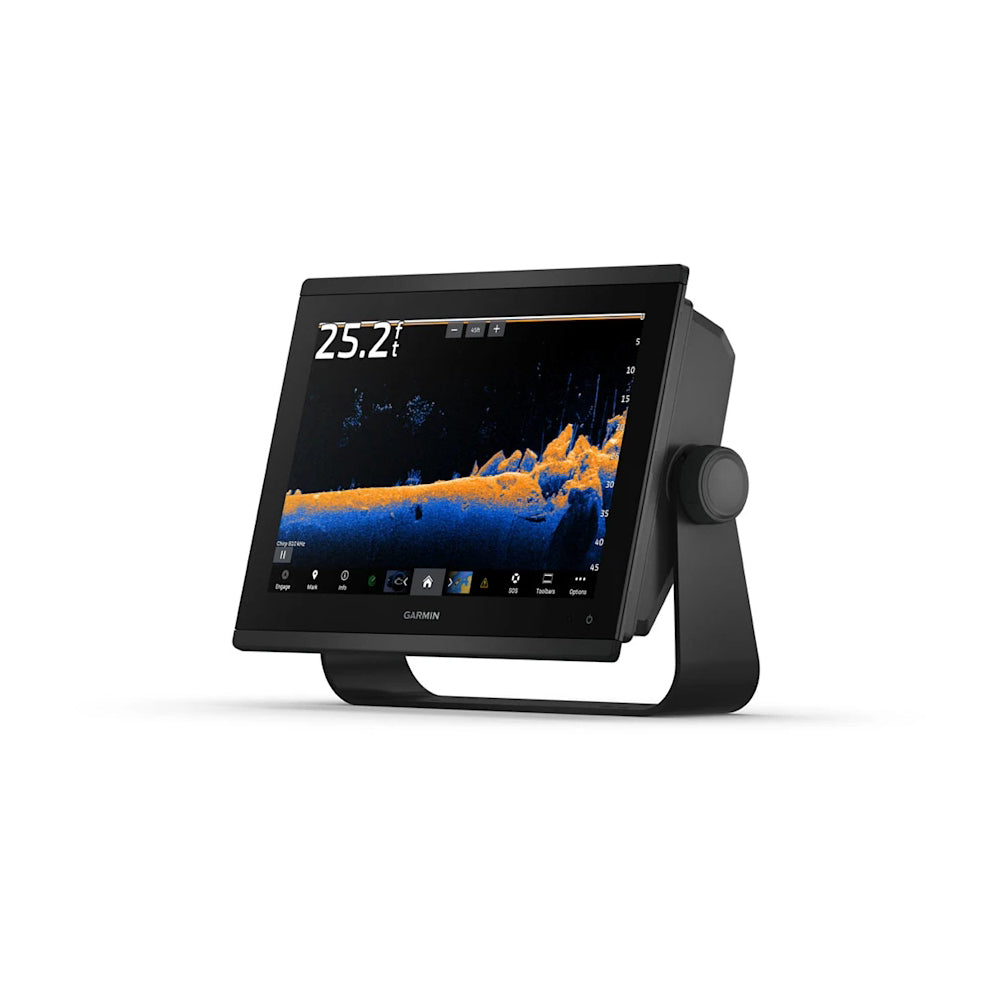

• Built-in Sonar Support: Supports traditional CHIRP sonar, ClearVü, and SideVü scanning sonars to provide exceptional underwater clarity.

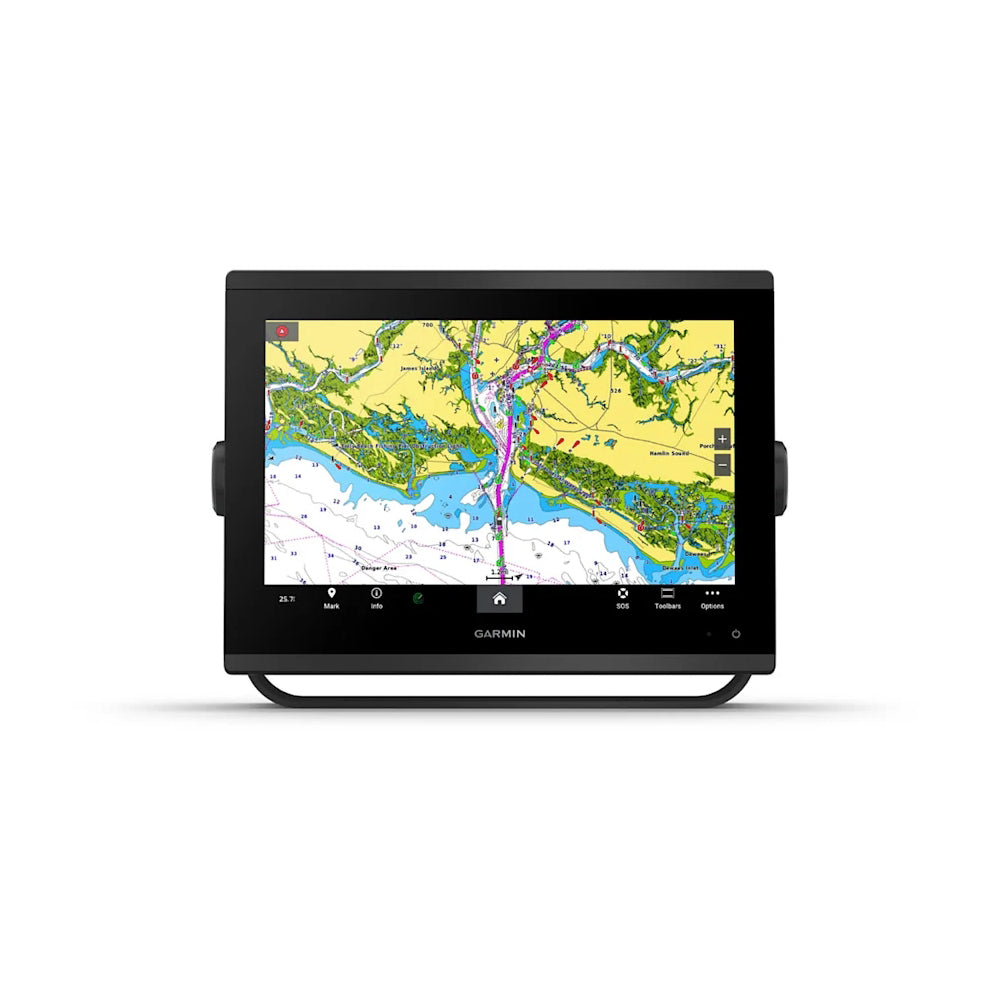

• Preloaded Mapping: Comes with Garmin Navionics+ Inland and Coastal maps, allowing for immediate, comprehensive coverage of waterways.
• Integrated Wi-Fi®: Facilitates easy connection with the ActiveCaptain® app for smart notifications, chart updates, and more.

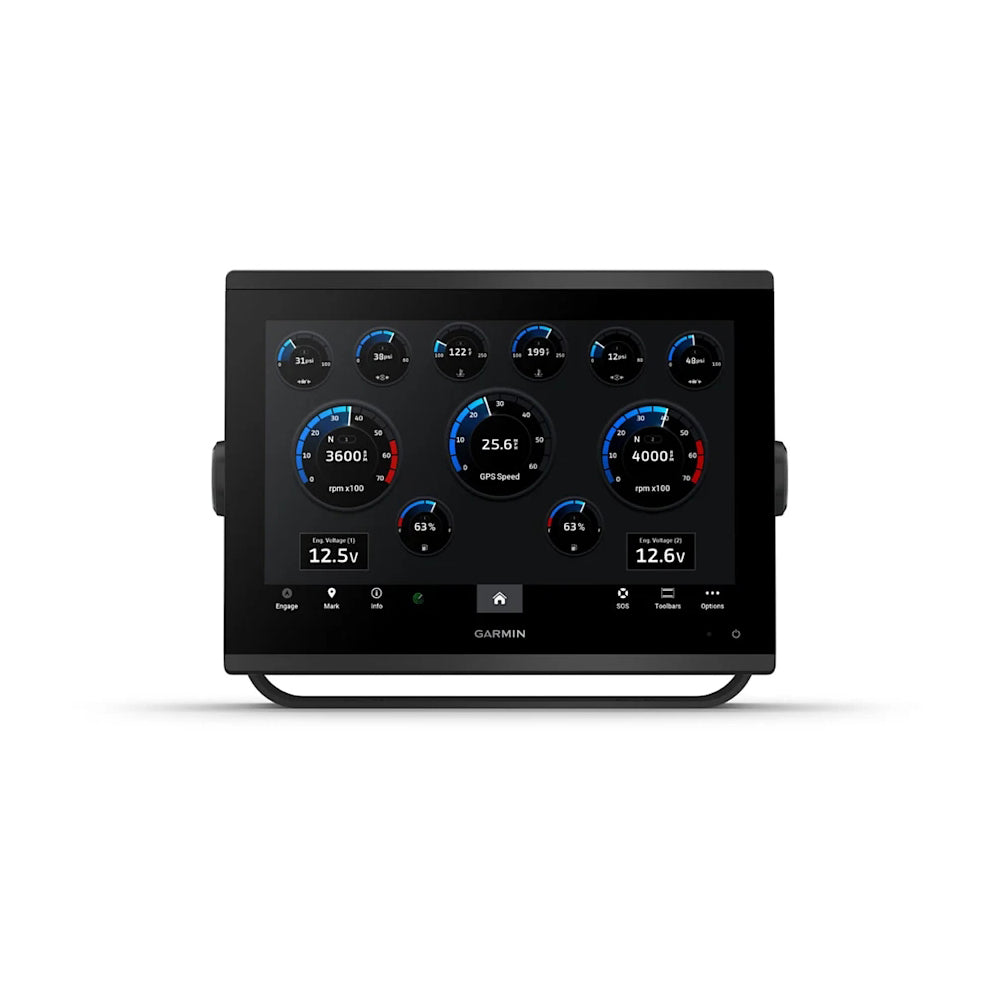

• Engine Connectivity: Compatible with a variety of engines, including select Yamaha® engines, for integrated engine data on your display.
• Advanced Performance: Robust electrical features with a power input range of 10 to 32 Vdc and maximum power usage of 43.0W, ensuring dependable operation even in demanding situations.
• Custom Messaging: Pairing with inReach® satellite communicators to send custom messages using the on-screen keyboard, offering enhanced communication capabilities.

Garmin GPSMAP 1243xsv Review

What are some common accessories to add to the Garmin GPSMAP 1243xsv?

• Antennas & Sensors
• Adapters
• Cables & Chargers
• Cases, Covers & Clips
• Connectors
• Memory Cards
• Mounts
• Networking Hardware
• NMEA 2000
• Remotes
• Sensors
• Update Cards
• Transducers
• Transducer Accessories
• Weather Caps

Garmin GPSMAP 1243xsv Features and Specs

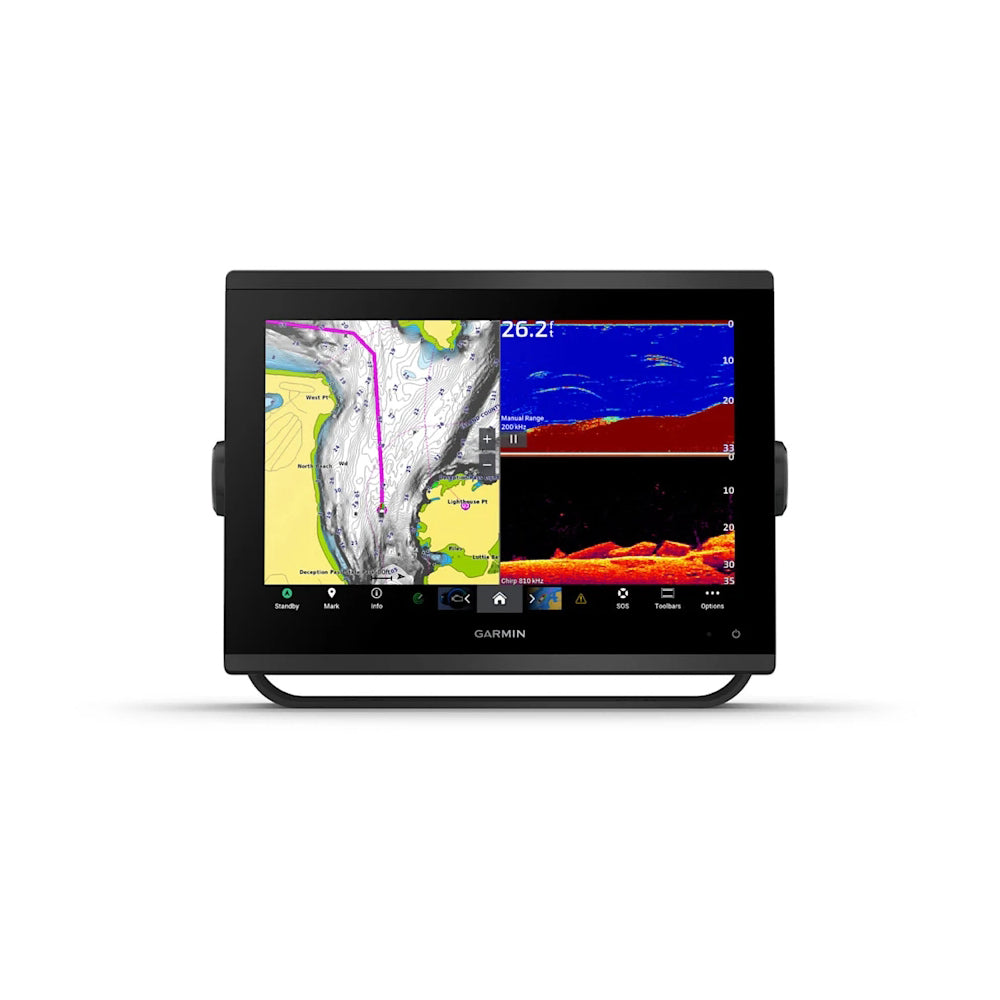

The Garmin 1243xsv is a versatile chartplotter designed for a wide range of marine activities. It boasts a large, high-resolution WXGA touchscreen display, robust connectivity options, and extensive mapping capabilities. This device integrates seamlessly with various marine instruments, supports multiple sonar types, and offers compatibility with Garmin's networked systems and apps, ensuring a comprehensive navigation experience.

Key Features:

Display:

• 12.1” diagonal WXGA touchscreen display
• 1280 x 800 pixel resolution

Connectivity:

• NMEA 2000® and NMEA 0183 compatibility
• Built-in Wi-Fi® and Bluetooth® for wireless integration
• Multiple ports including HDMI, USB, and Garmin Marine Network

Mapping and GPS:

• Built-in GPS, GLONASS, and Galileo receiver
• Supports various maps including Garmin Navionics+, Garmin Quickdraw Contours, and more
• 5000 waypoints, 50,000 track points, and 100 navigation routes

Sonar Features:

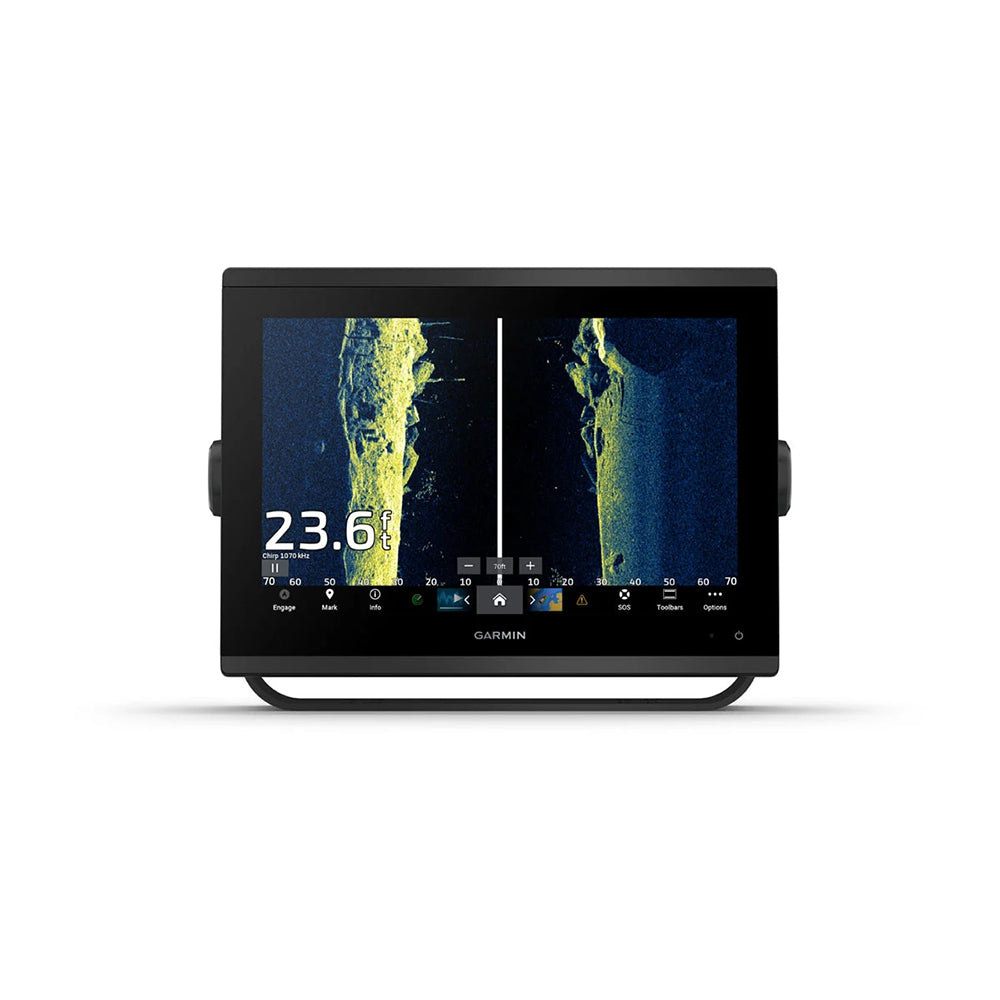

• Built-in traditional CHIRP sonar, ClearVü, and SideVü
• 1 kW power output
• Supports Panoptix™ and LiveScope sonar

Engine Integration:

• Connects to select Yamaha® engines

Apps and Compatibility:

• Pairs with the ActiveCaptain® app for smart notifications, software updates, and more
• Compatible with marine devices like quatix® watches, gWind™ Wireless 2 transducers, and GNX™ Wind marine instruments

Power and Dimensions:

• Power input of 10 to 32 Vdc
• Dimensions: 12.1” x 8.9” x 3.2”
• Weight: 6.6 lbs (3.0 kg)

Additional Features:

• IPX7 water rating
• Accepted data cards: 2 microSD cards
• Supports FUSION-Link™ compatible radios and Garmin Remote Input Devices (GRID)

What's in the box of the Garmin GPSMAP 1243xsv?

• (1) GPSMAP 1243xsv chartplotter
• (1) microSD™ card preinstalled
• (1) Power cable
• (1) NMEA 2000® T-connector
• (1) NMEA 2000 drop cable (2 meters)
• (1) 8-pin transducer to 12-pin sounder adapter cable

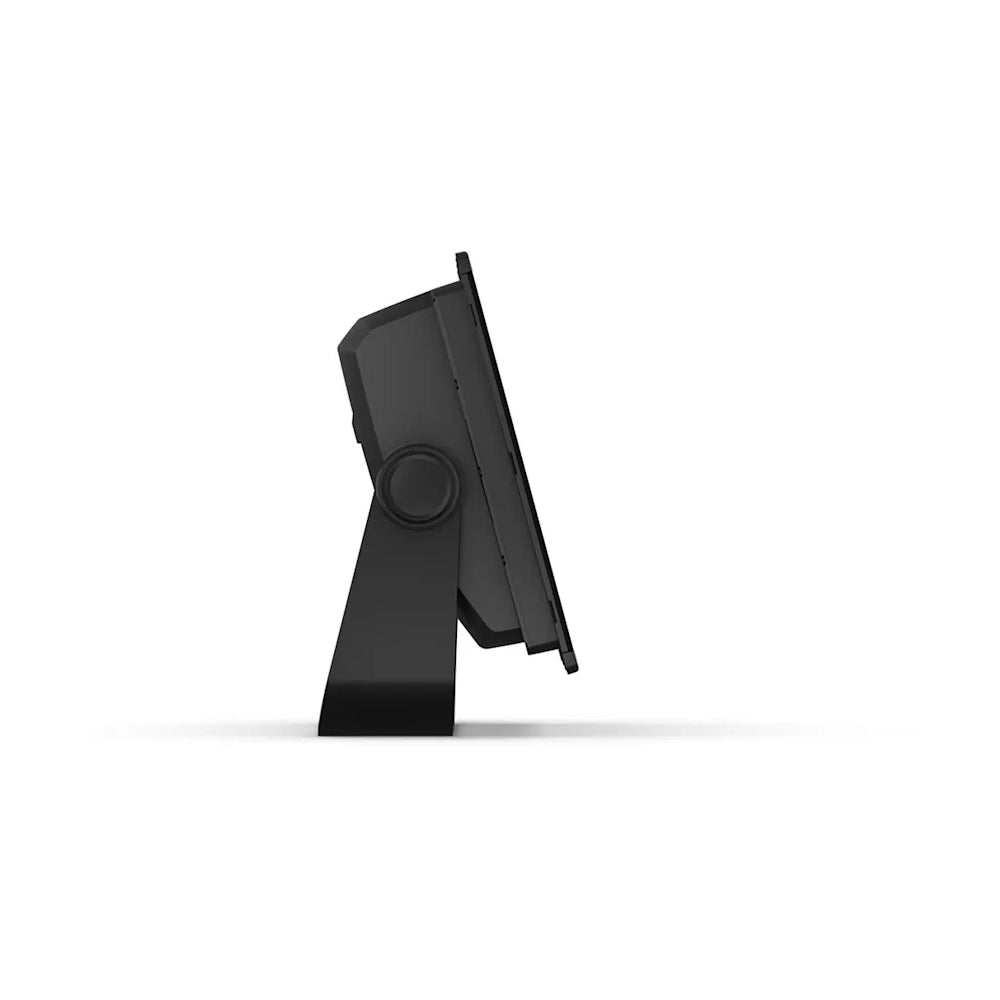

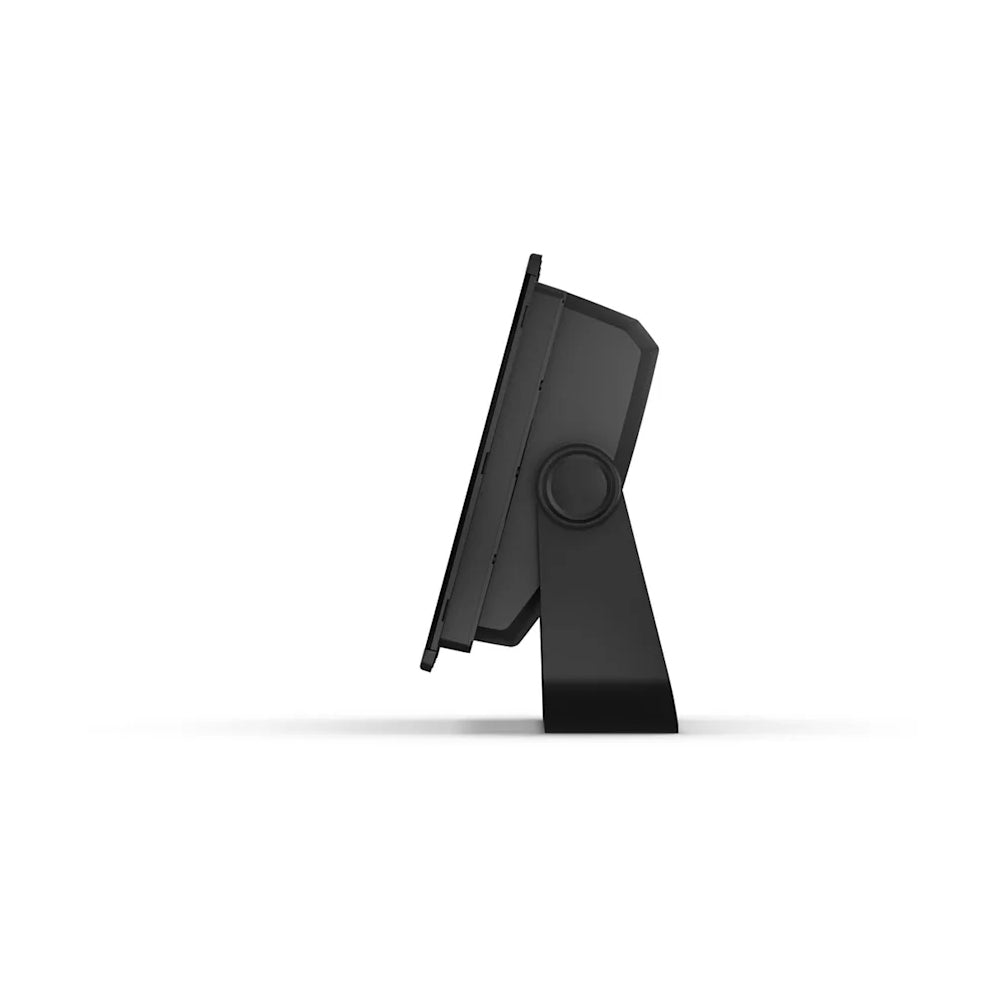

• (1) Bail mount kit with knobs
• (1) Flush mount kit with gasket
• (1) Protective cover
• (1) Set of trim piece snap covers
• (1) Documentation

Garmin GPSMAP 1243xsv FAQs

What are the dimensions and weight of the Garmin GPSMAP 1243xsv?

The Garmin GPSMAP 1243xsv measures 12.1” x 8.9” x 3.2” (30.8 x 22.8 x 8.2 cm) and weighs 6.6 lbs (3.0 kg).

Is the Garmin GPSMAP 1243xsv water-resistant?

Yes, the Garmin GPSMAP 1243xsv has a water rating of IPX7, making it suitable for use on the water.

What types of maps and memory support does the Garmin GPSMAP 1243xsv offer?

The device accepts 2 microSD cards and can store up to 5000 waypoints, 50,000 track points, 50 saved tracks, and 100 navigation routes.

Does the Garmin GPSMAP 1243xsv support GPS, GLONASS, and Galileo?

Yes, the Garmin GPSMAP 1243xsv is compatible with GPS, GLONASS, and Galileo satellite systems, and it has a built-in 10 Hz receiver.

Can the Garmin GPSMAP 1243xsv connect to NMEA 2000® and NMEA 0183 networks?

Yes, it is compatible with both NMEA 2000® and NMEA 0183 networks, facilitating connectivity to a wide range of marine devices.

What are the power requirements for the Garmin GPSMAP 1243xsv?

The power input for the Garmin GPSMAP 1243xsv ranges from 10 to 32 Vdc, with a typical current draw of 1.68 A at 12 Vdc and a maximum power usage of 43.0W at 10 Vdc.

What sonar features does the Garmin GPSMAP 1243xsv support?

The Garmin GPSMAP 1243xsv supports built-in traditional CHIRP sonar, ClearVü, SideVü, and can pair with Panoptix™ and LiveScope sonars.

Does the Garmin GPSMAP 1243xsv have wireless connectivity?

Yes, it features built-in Wi-Fi® connectivity, Bluetooth® pairing, and ANT+ connectivity, allowing for seamless integration with various devices and the ActiveCaptain® app.

Can I send messages using an inReach device paired to my Garmin GPSMAP 1243xsv?

Yes, you can pair your inReach satellite communicator to the chartplotter and send custom messages using the on-screen keyboard, access your contact list, or enter an email, inReach address, or phone number.

What display type and resolution does the Garmin GPSMAP 1243xsv offer?

The device features a WXGA touchscreen display, measuring 12.1" diagonally with a resolution of 1280 x 800 pixels.

What is the correct way to write the product name? Is it Garmin 1243 xsv, Garmin 1243xsv, or 1243xsv Garmin?

When referencing the product, the correct way to write the name is Garmin 1243xsv. Capitalize the brand name "Garmin" and keep the model number "1243xsv" attached to the brand name without any additional spaces or hyphens.
