iRay Obverse Mounting

• The iRay Obverse Mounting Shoe offers a notable solution for attaching thermal units to helmets with precision and dependability. Here are key highlights of its functionality and benefits:
• Dual or Obverse Mounting Configuration: Allows for installation of the RICO MICRO thermal unit in either a side-by-side (dual) or front-facing (obverse) setup, providing versatility in equipment setup.
• Compatibility: Designed to seamlessly integrate with standard dovetail mounts commonly used on helmet-mounted night vision systems.
• Robust Construction: Machined from 6061 aircraft aluminum alloy, ensuring durability and a lightweight addition to gear.
• Minimal Reflection Finish: Surfaces are treated with a type 3 hardcoat anodized finish to reduce glare and enhance wear resistance, crucial for tactical applications.
• Precise Alignment: Ensures proper spacing and alignment of thermal units, especially important when used in a dual configuration for optimal functionality.

iRay AC53 Obverse Mounting Features and Specs

The iRay AC53 Obverse Mounting Shoe represents a critical advancement in the tactical equipment field, tailored specifically for the RICO MICRO thermal unit. iRayUSA and American Defense Manufacturing collaborated to develop a new helmet mounting system. The system offers options for mounting helmets on either the front or back.

It integrates seamlessly with standard dovetail mounts used in night vision setups and is built to endure with its machined 6061 aircraft aluminum alloy construction. Adding minimal weight, its design focuses on strength, reliability, and reduced reflection through a type 3 hardcoat anodized finish. Manufactured in the USA, this mounting solution stands out for its innovation and quality.

Key Features:

• Dual or Obverse Mounting Options: For flexible helmet integration.
• Compatibility: Designed exclusively for the RICO MICRO thermal unit.
• Mounting Interface: Utilizes a standard dovetail shoe for easy attachment.
• Material: Constructed from 6061 Aluminum Alloy, ensuring durability.
• Weight: Adds only .8lb to the equipment, emphasizing lightweight design.
• Surface Treatment: Features a type 3 hardcoat anodized finish for reduced reflectivity and enhanced wear resistance.
• Manufacture: Proudly made in the USA, guaranteeing quality and reliability.

What's in the box of the iRay Obverse Mounting?

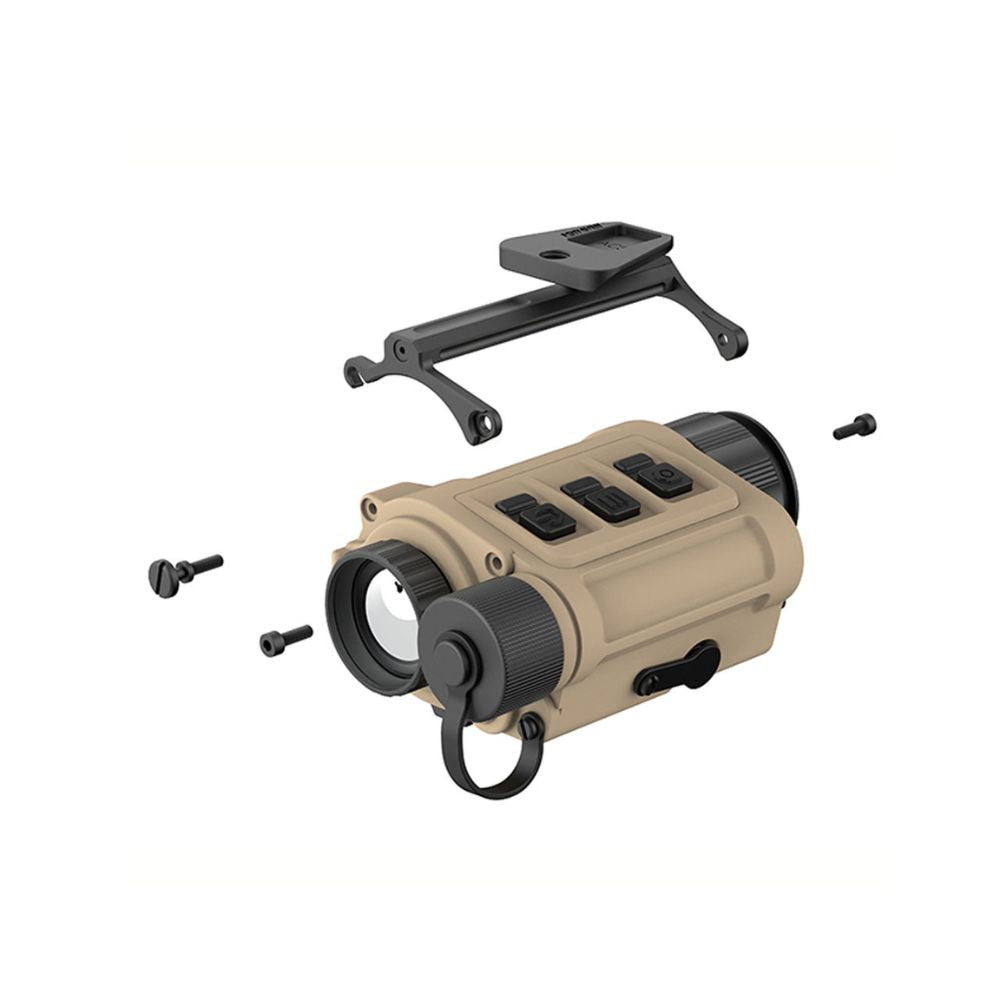

• 1 x Obverse MICRO Shoe (OMS)
• 3 x Housing Screws

iRay AC53 Obverse Mounting FAQs

Can the Obverse MICRO Shoe be used with other thermal units besides the RICO MICRO?

No, the Obverse MICRO Shoe is designed specifically to fit the RICO MICRO thermal unit. Its configuration and measurements are tailored to ensure a perfect fit with this model.

How does the dual-mounted configuration affect battery access?

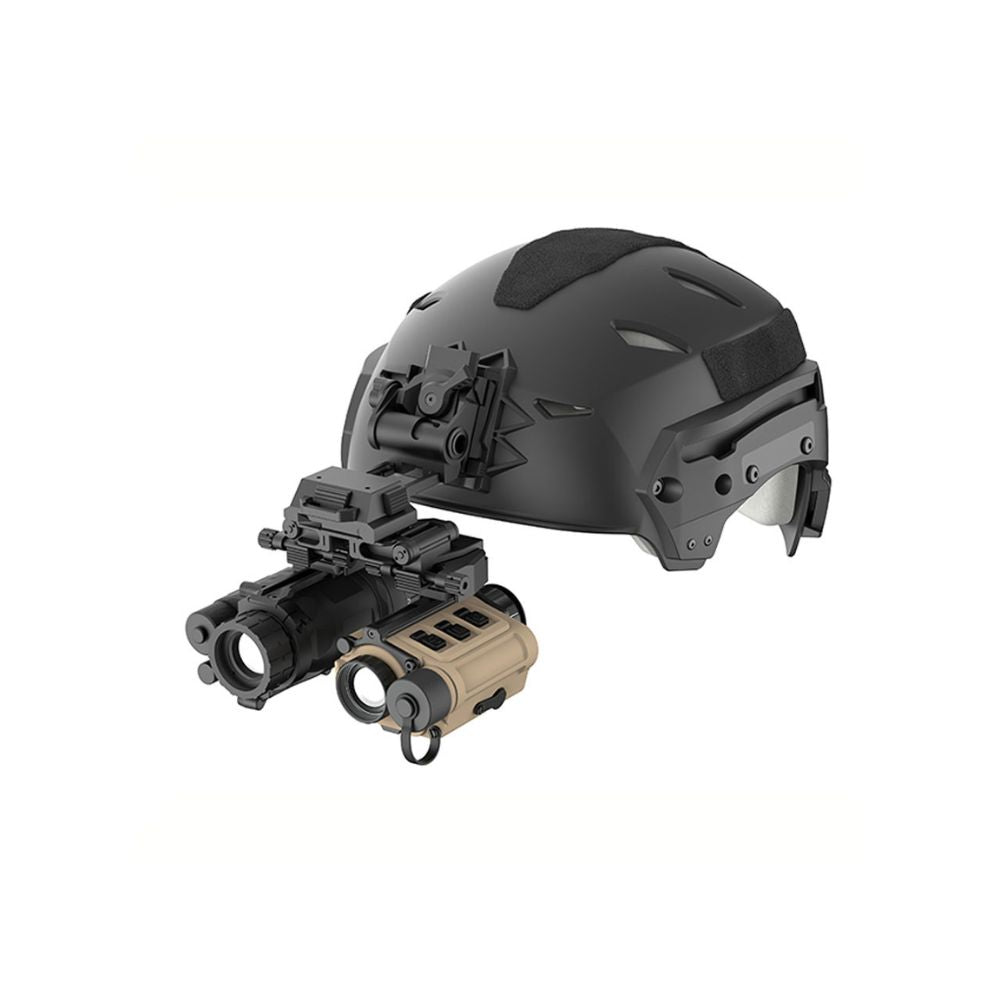

In a dual-mounted configuration, with one unit on the Obverse Shoe and another on the AC52 PICTAIL Helmet/Weapon Shoe, both battery doors face outward. This design allows for easy access to the battery compartments without needing to remove or adjust the units on the helmet.

Will mounting the RICO MICRO with the Obverse Shoe interfere with the thermal unit’s operational capabilities?

Mounting the RICO MICRO using the Obverse Shoe will not interfere with its operational capabilities. The design ensures that the unit's functionality and visibility are fully maintained, providing an optimal user experience.

Is any special tool required for the installation of the InfiRay Obverse Mounting?

No special tools are required for the installation of the Obverse Shoe. The unit can be securely attached using three housing screws, ensuring a firm fit with the RICO MICRO thermal unit.
