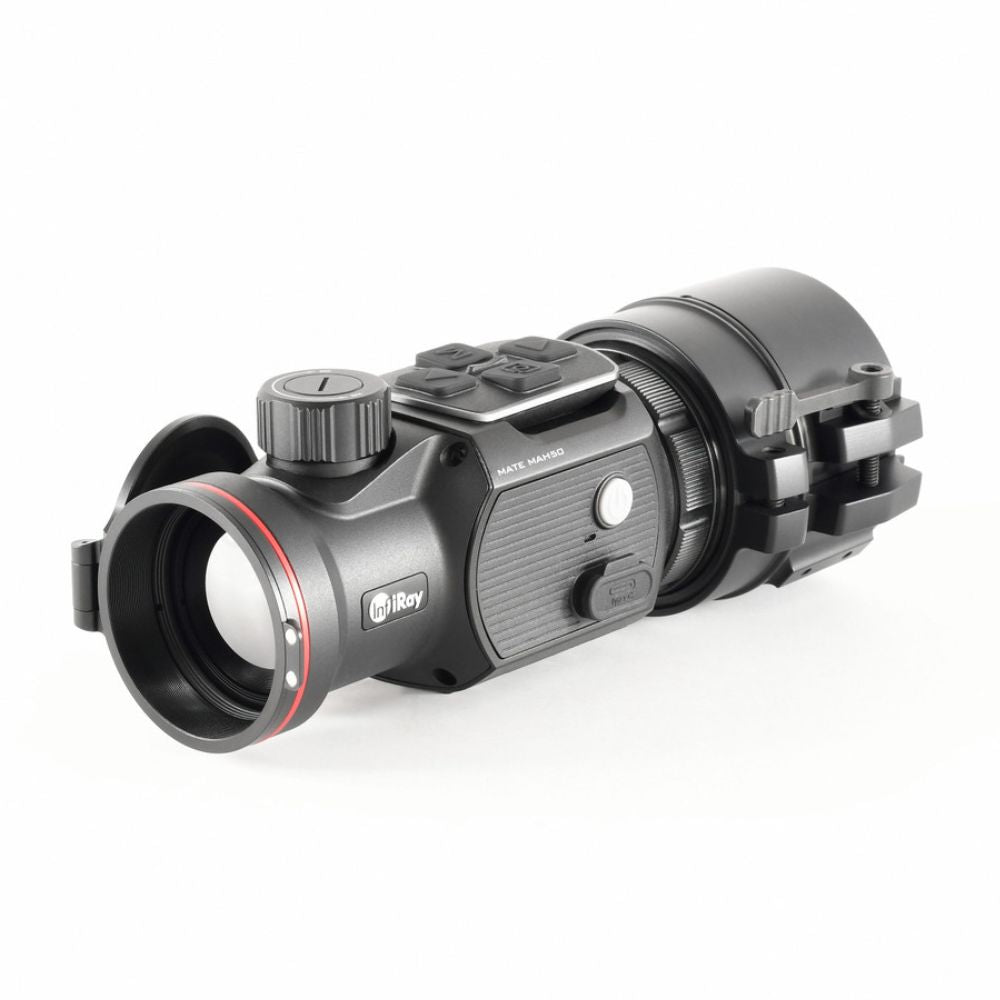

iRay MAH50: High-Precision Thermal Clip-On with Advanced Imaging and Sturdy Build

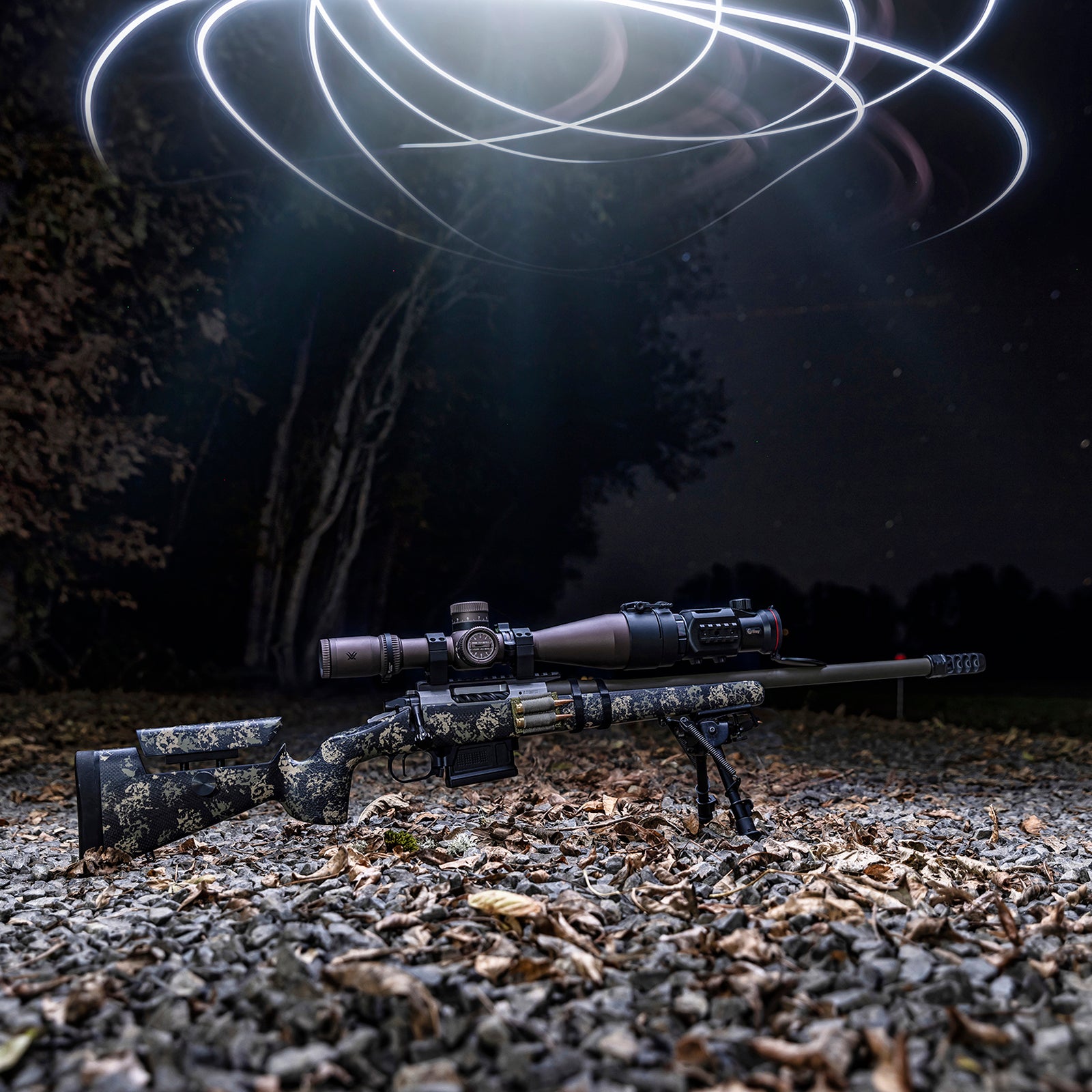

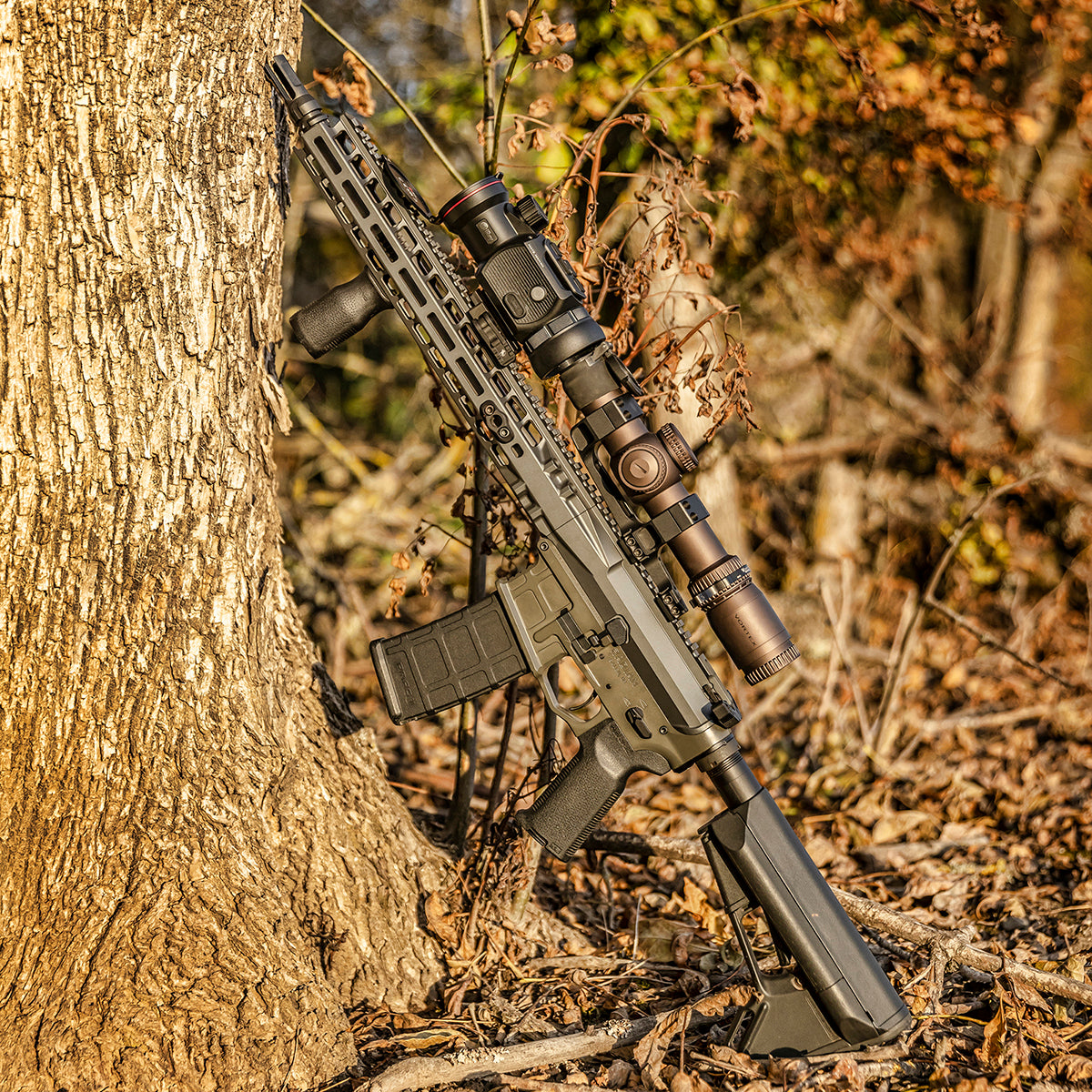

• High-Performance Thermal Clip-On: The iRay Mate MAH50 is designed to mount on your existing day scope, turning it into a powerful thermal imaging device.
• Detection Range: Features an impressive detection range of up to 2400 yards, allowing for long-distance target acquisition.
• Advanced Sensor Technology: Utilizes the InfiRay MICRO II sensor with a 12μm pixel size and thermal sensitivity of <25mk for high-resolution thermal imagery.

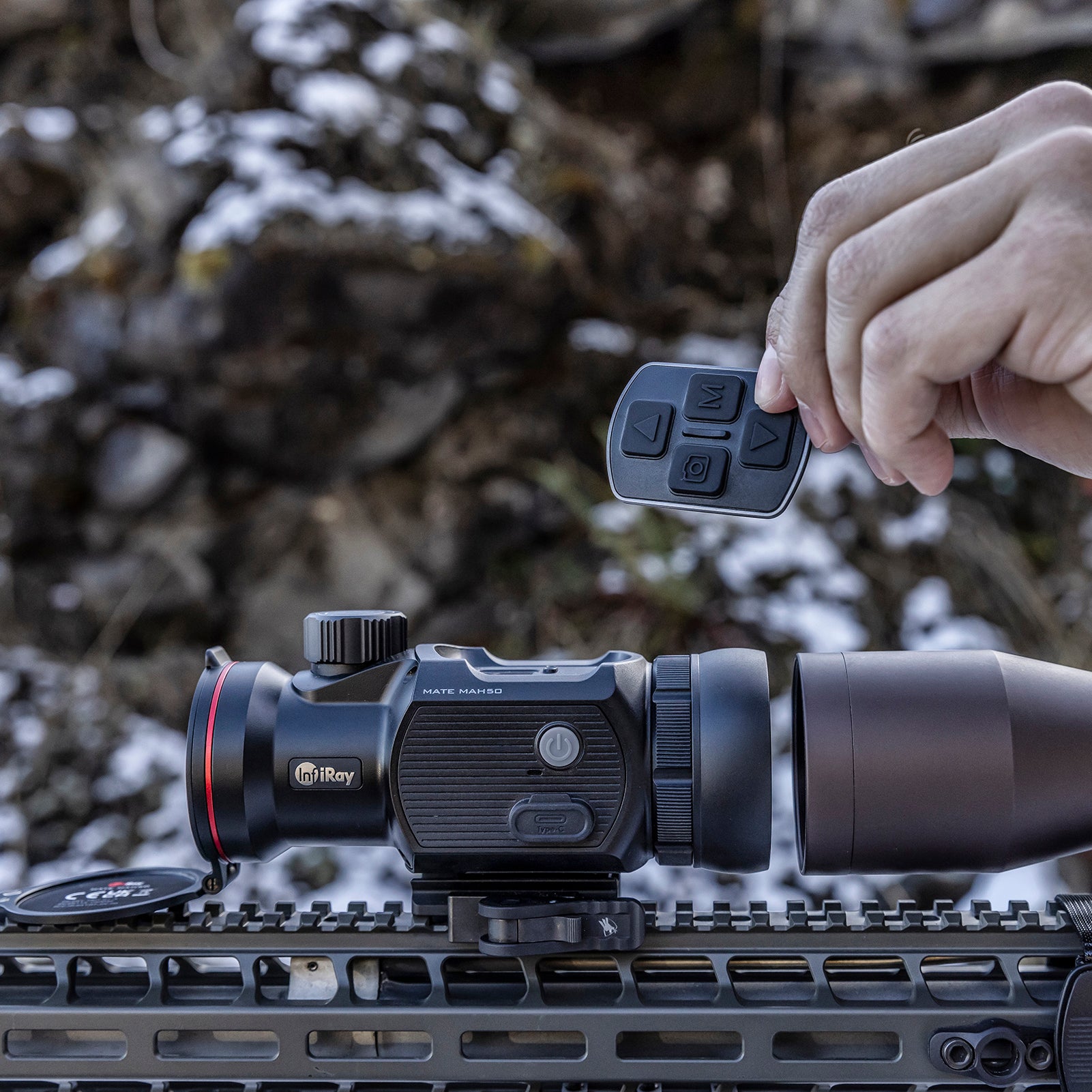

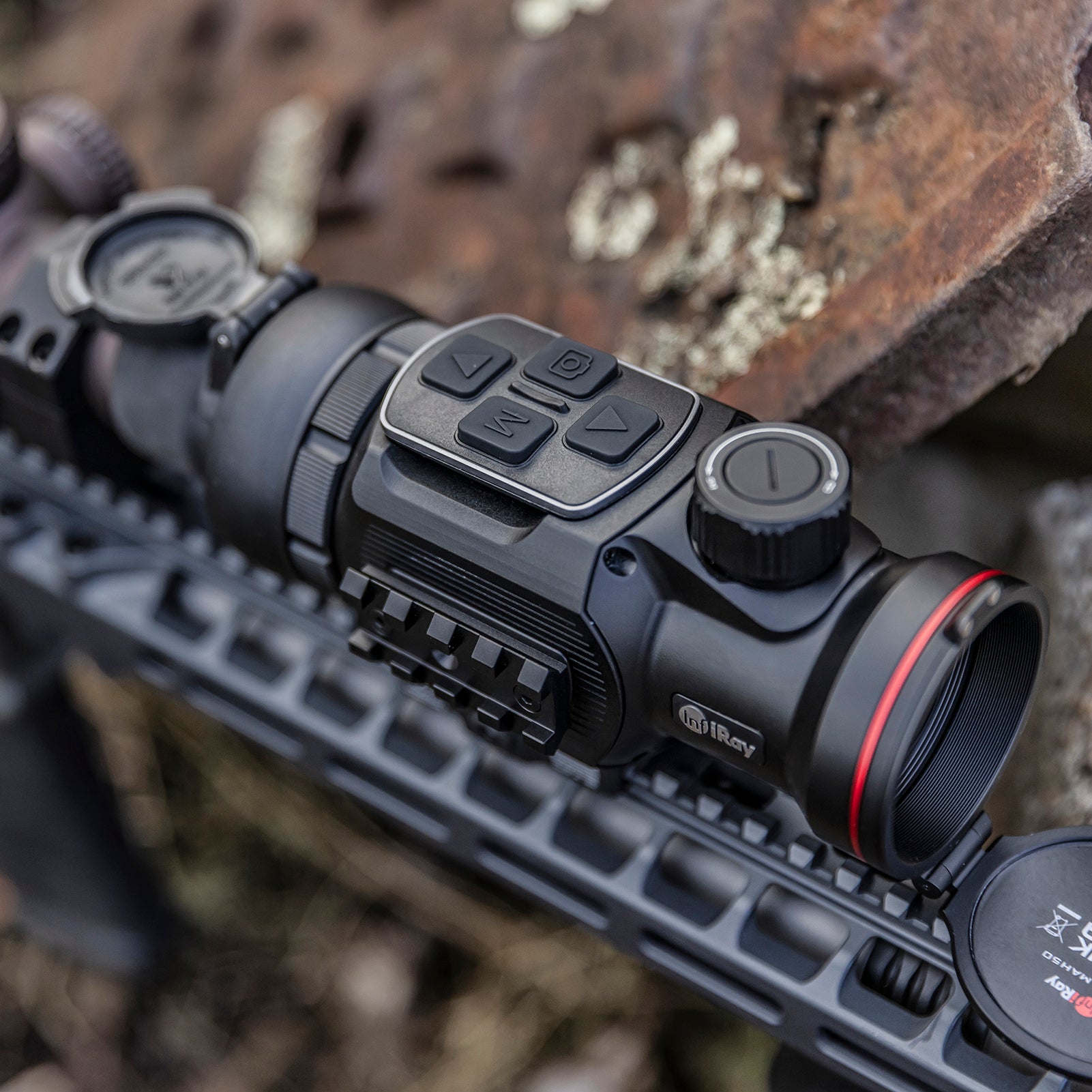

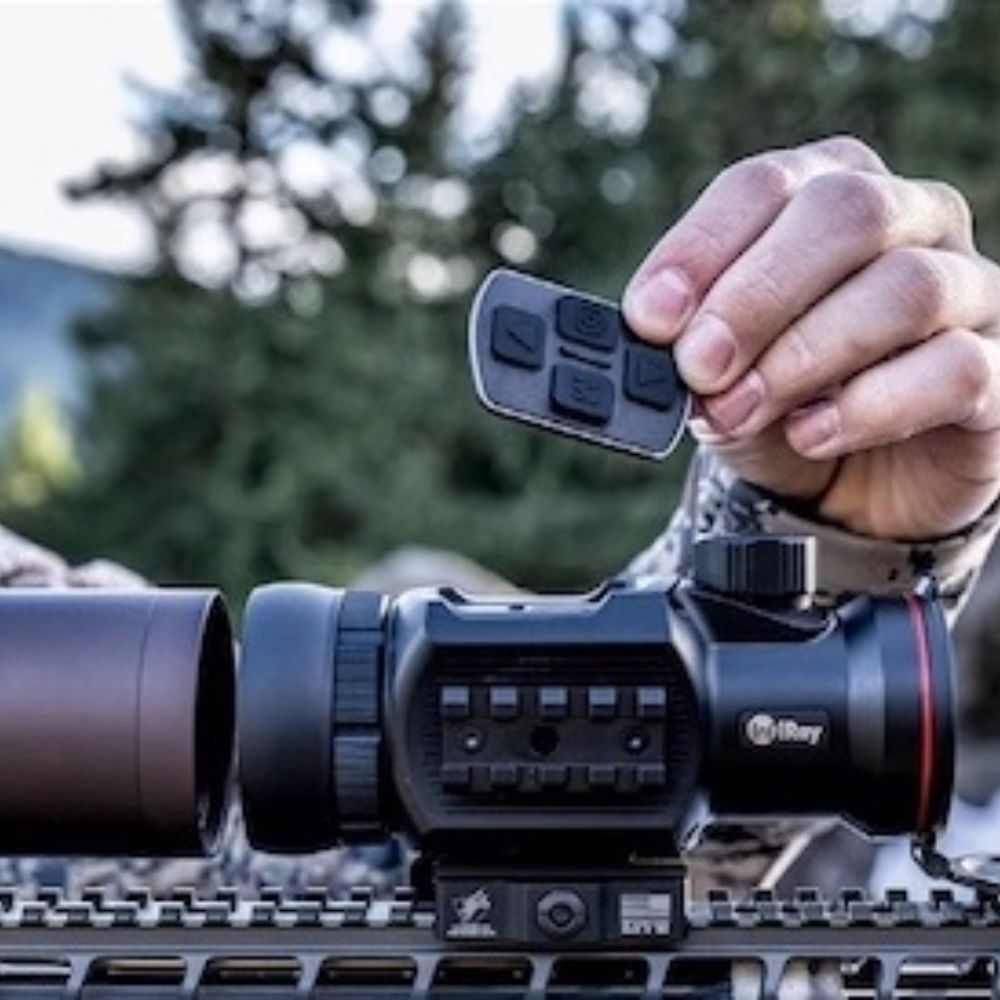

• User-Friendly Design: Equipped with a distortion-free AMOLED display and a removable control pad for ease of use in the field.
• Robust Construction: The MAH50 is housed in durable magnesium alloy with an IP67 ingress protection rating, ensuring it withstands harsh environmental conditions.

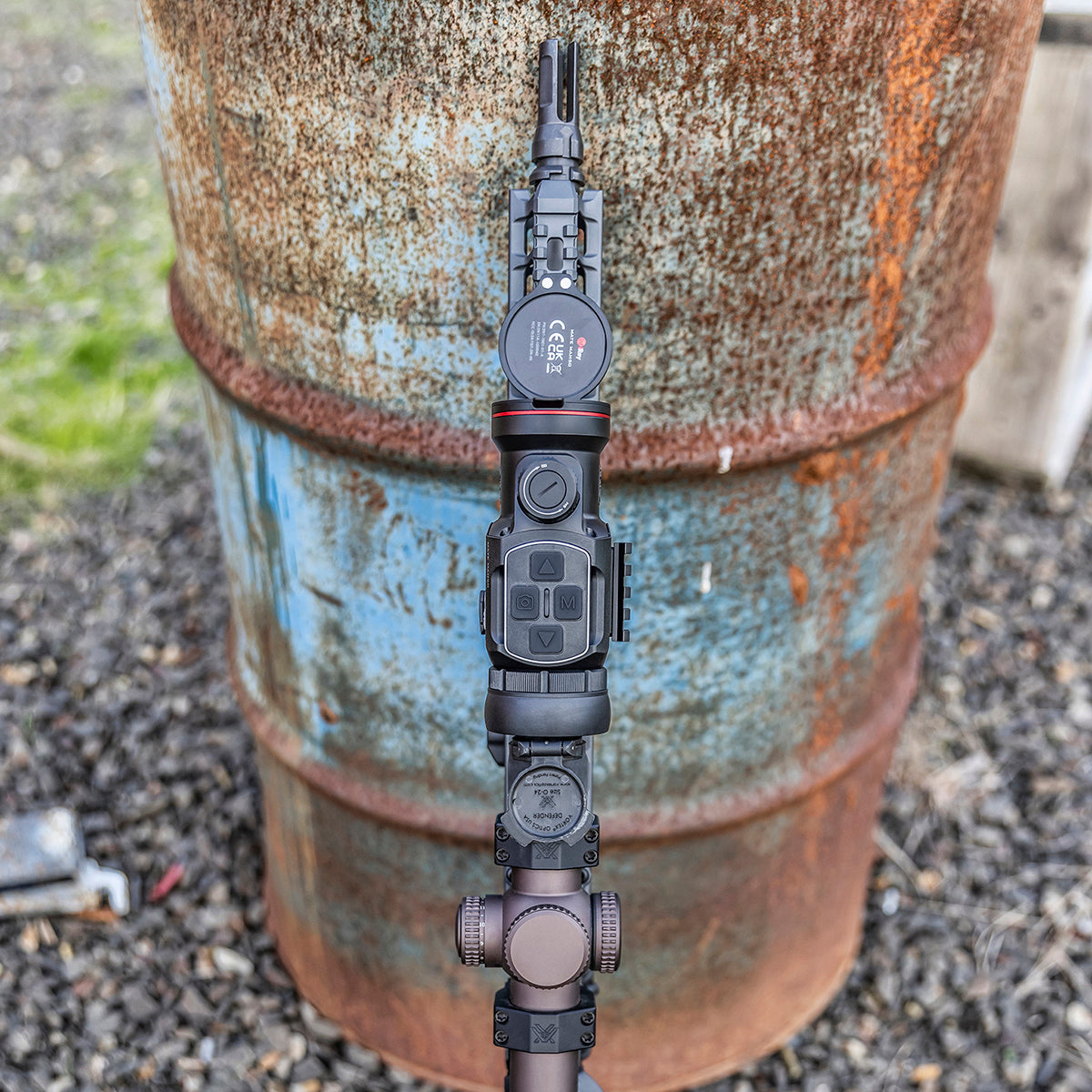

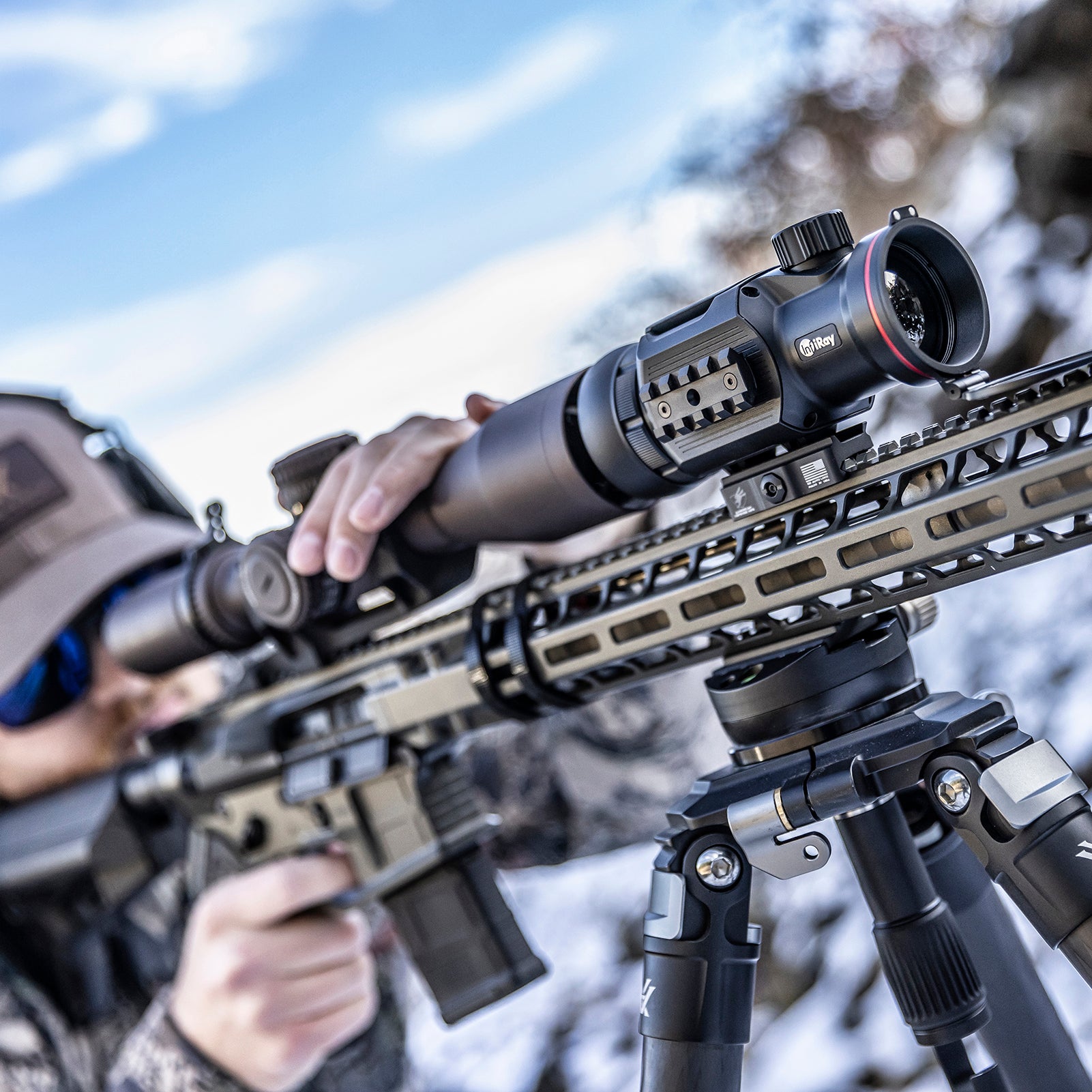

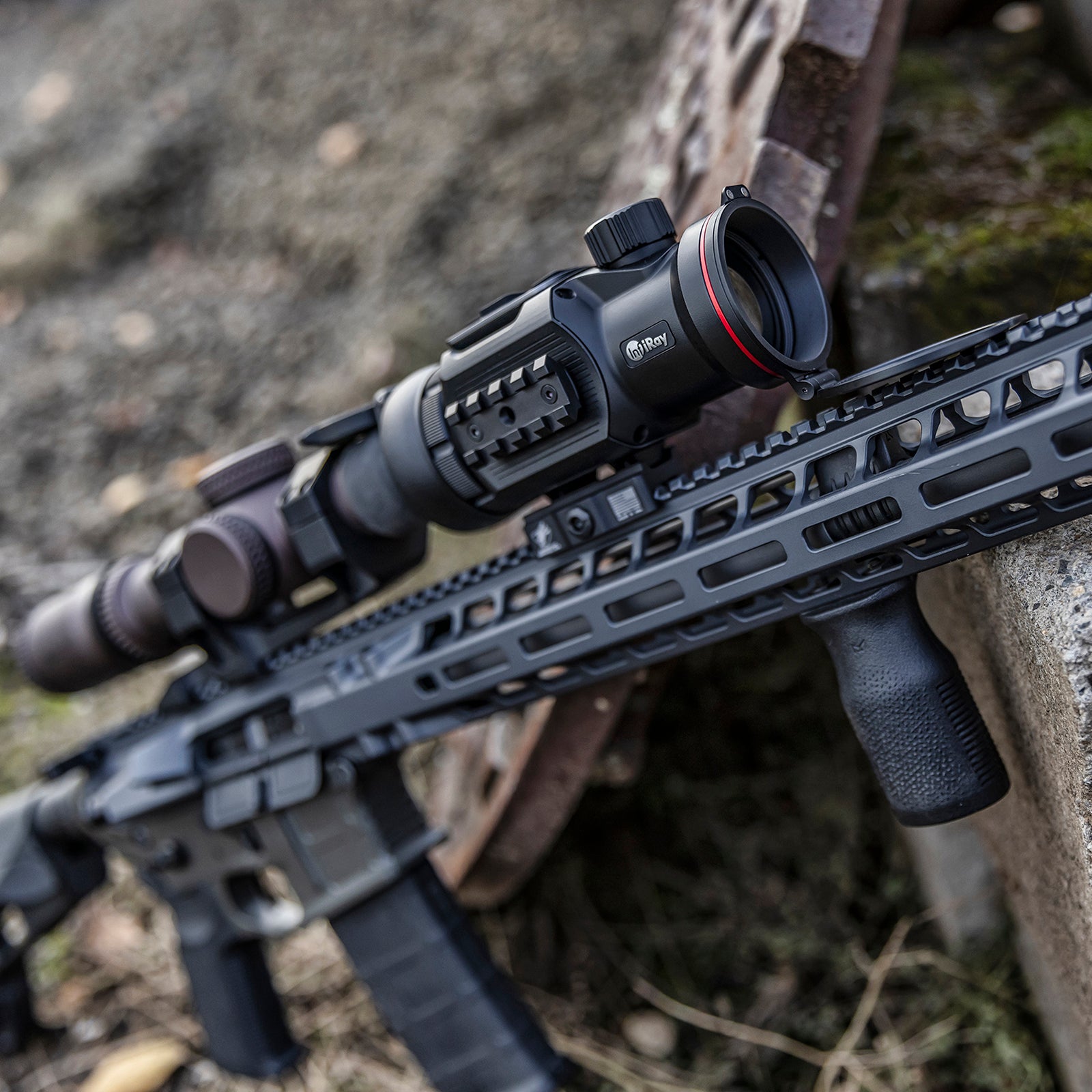

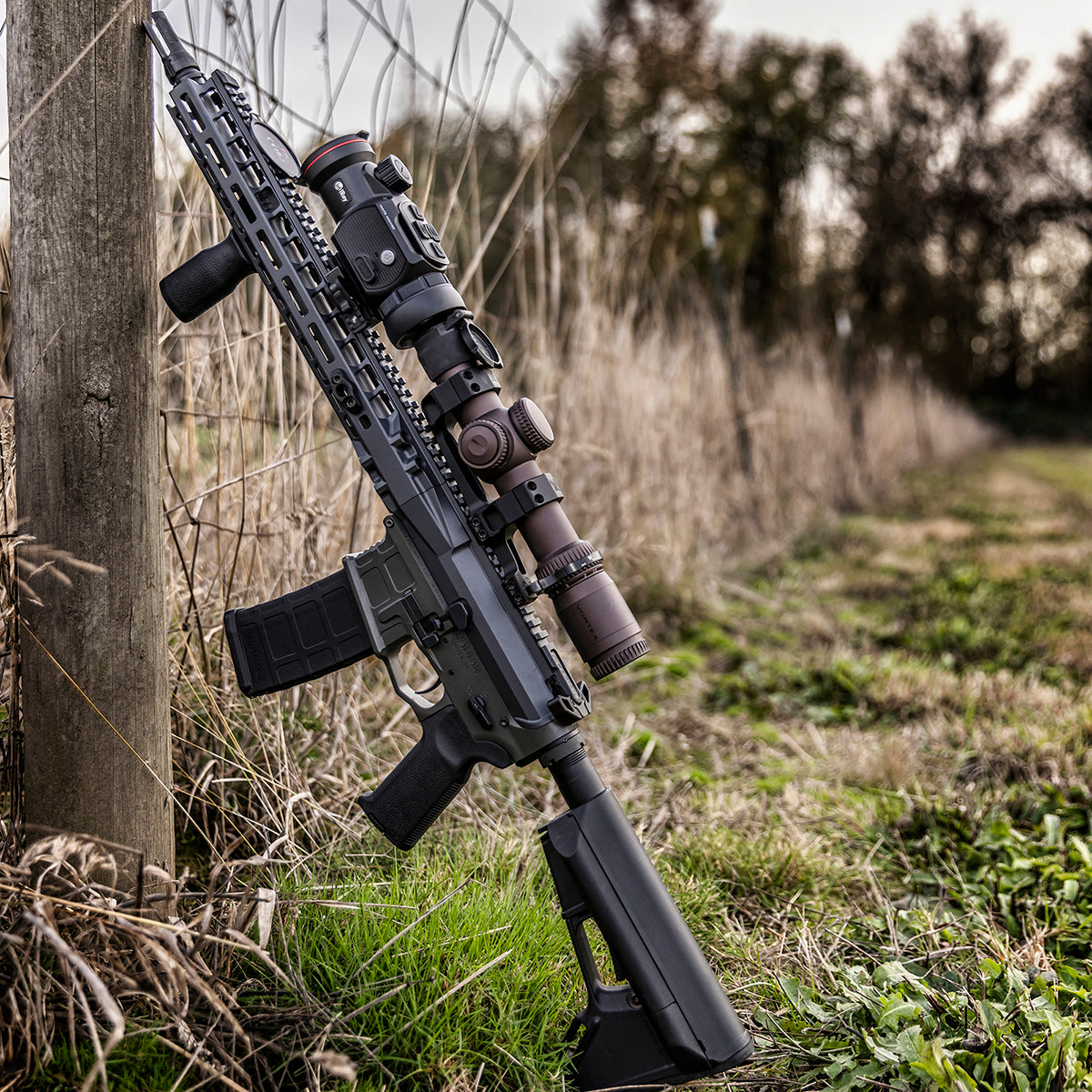

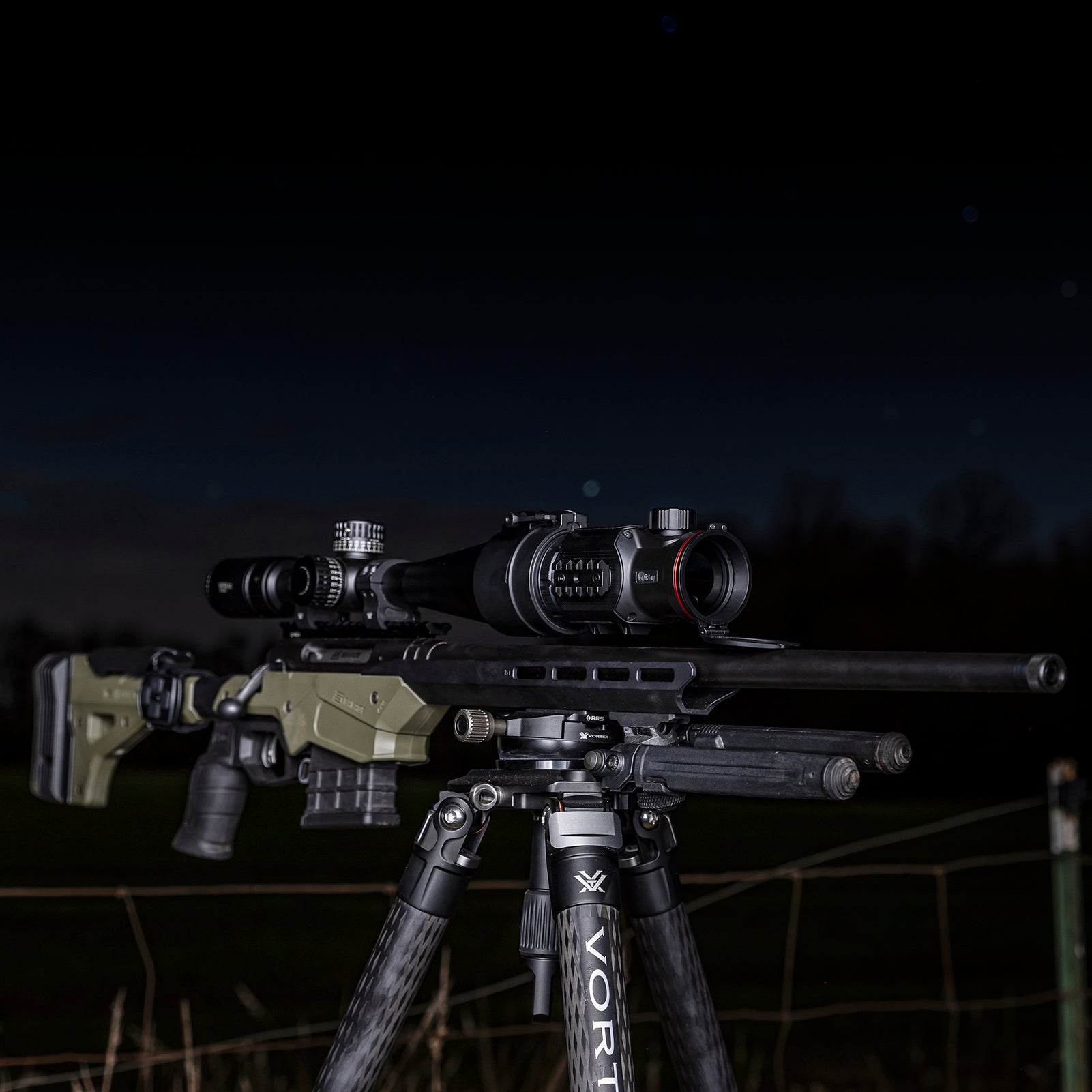

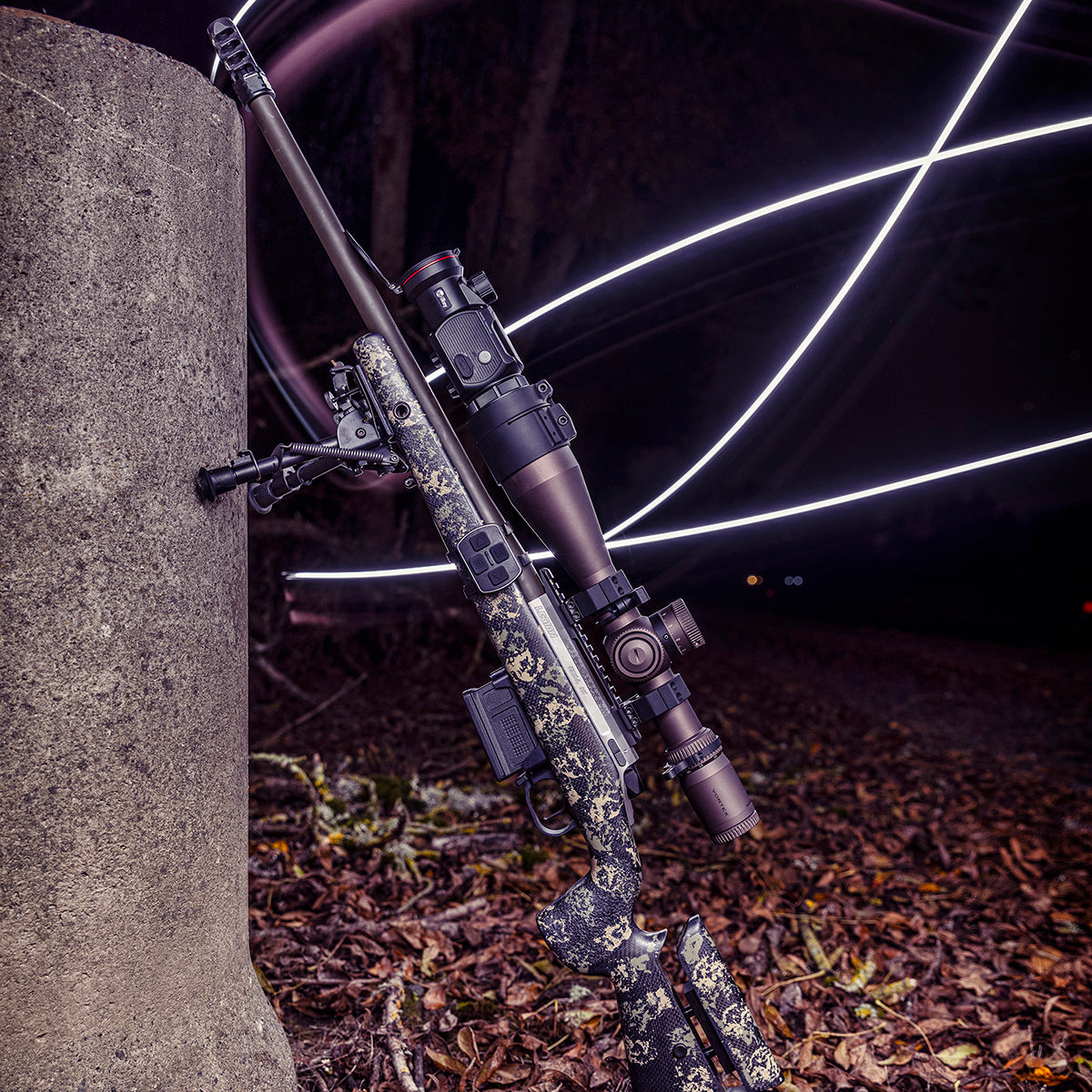

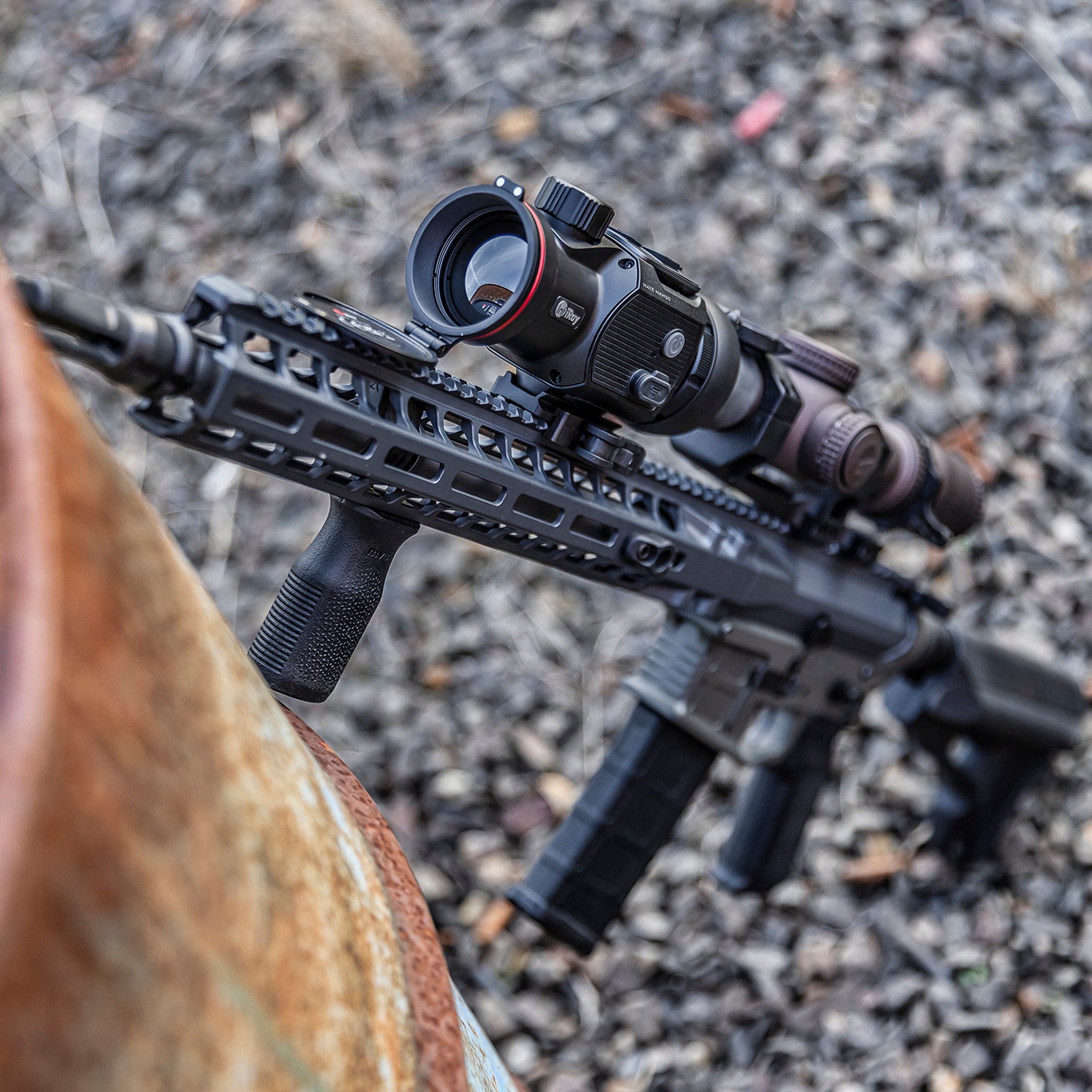

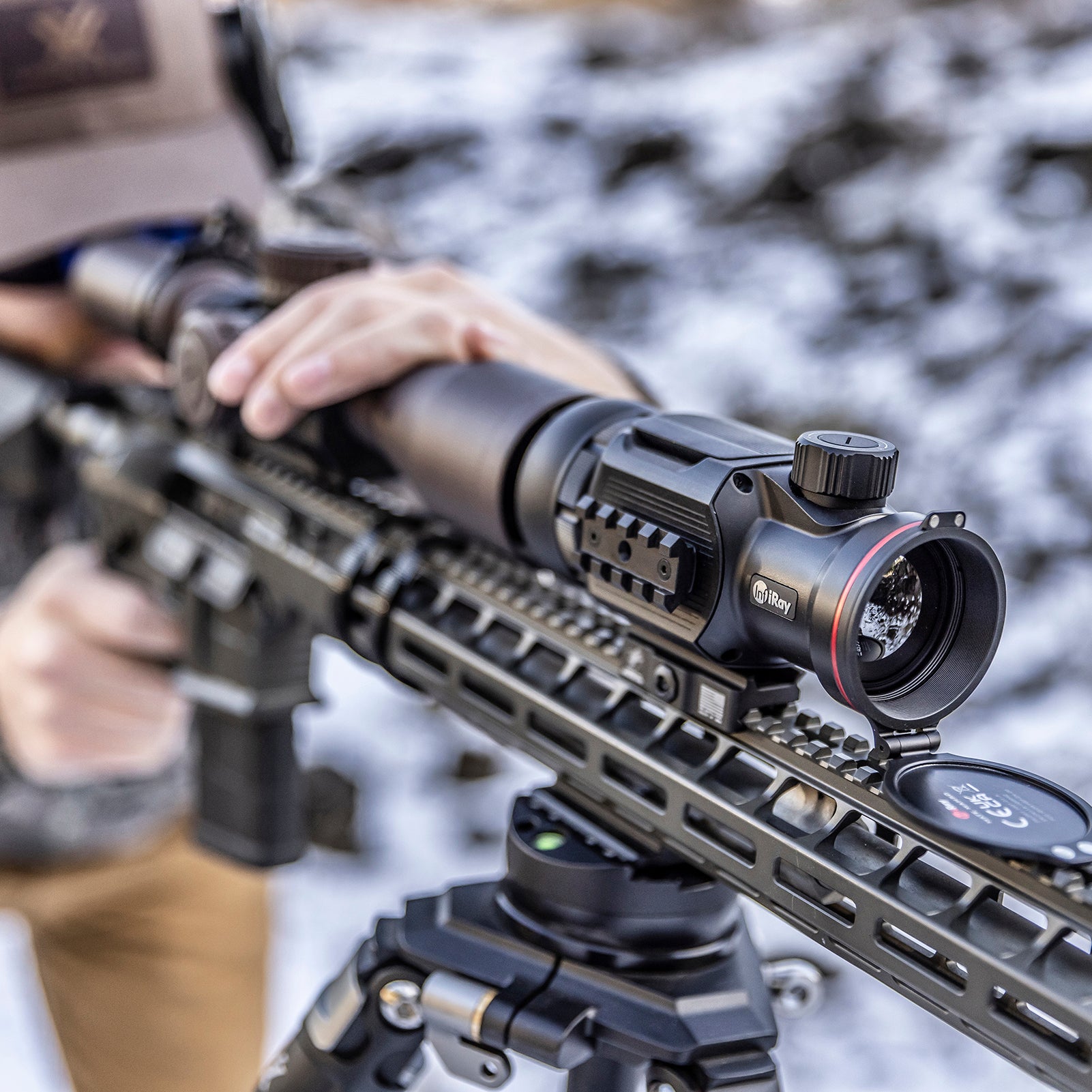

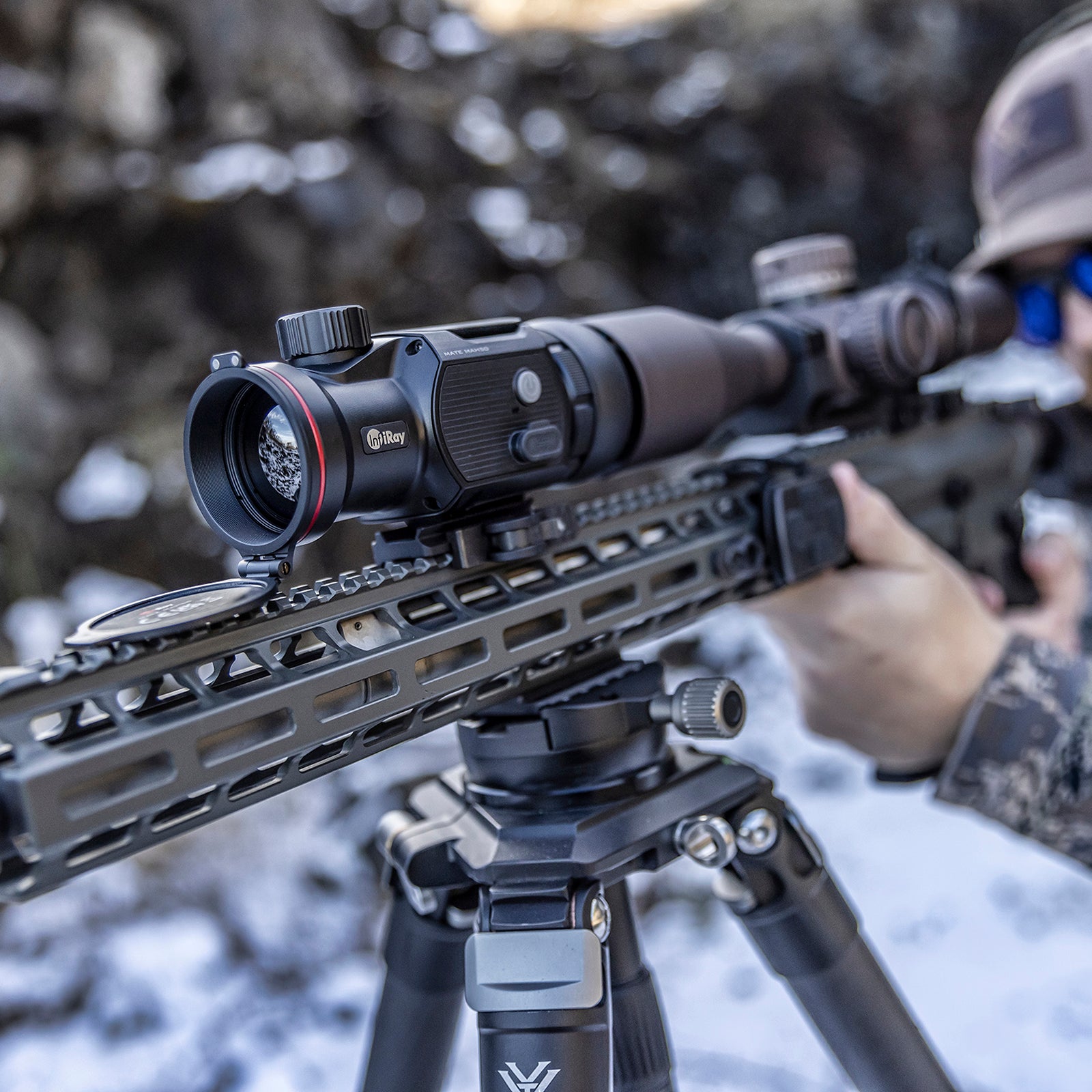

• Versatile Mounting Options: Can be directly mounted to the objective of your day scope or attached via a MIL-STD-1913 Picatinny rail.
• Onboard Recording and Connectivity: Capable of video and image recording with 32GB onboard storage and wireless connectivity via a mobile app for seamless data transfer.
• Reliable Power Options: Provides uninterrupted operation with a built-in battery pack lasting over 4 hours or an optional power bank for extended use.
• Quick Startup: Boots up in under 10 seconds to ensure rapid deployment.
• Wide Color Palette: Offers multiple viewing options with White Hot, Black Hot, Red Hot, and Color palettes for enhanced viewing versatility.

InfiRay Mate MAH50 Review

What are some common accessories to add to the iRay MAH50?

• : Extend the operating time with additional power sources like the IBP-5 power bank.
• : Enhance targeting capabilities with the ILR-1200-2 LRF, which is available as an optional accessory.

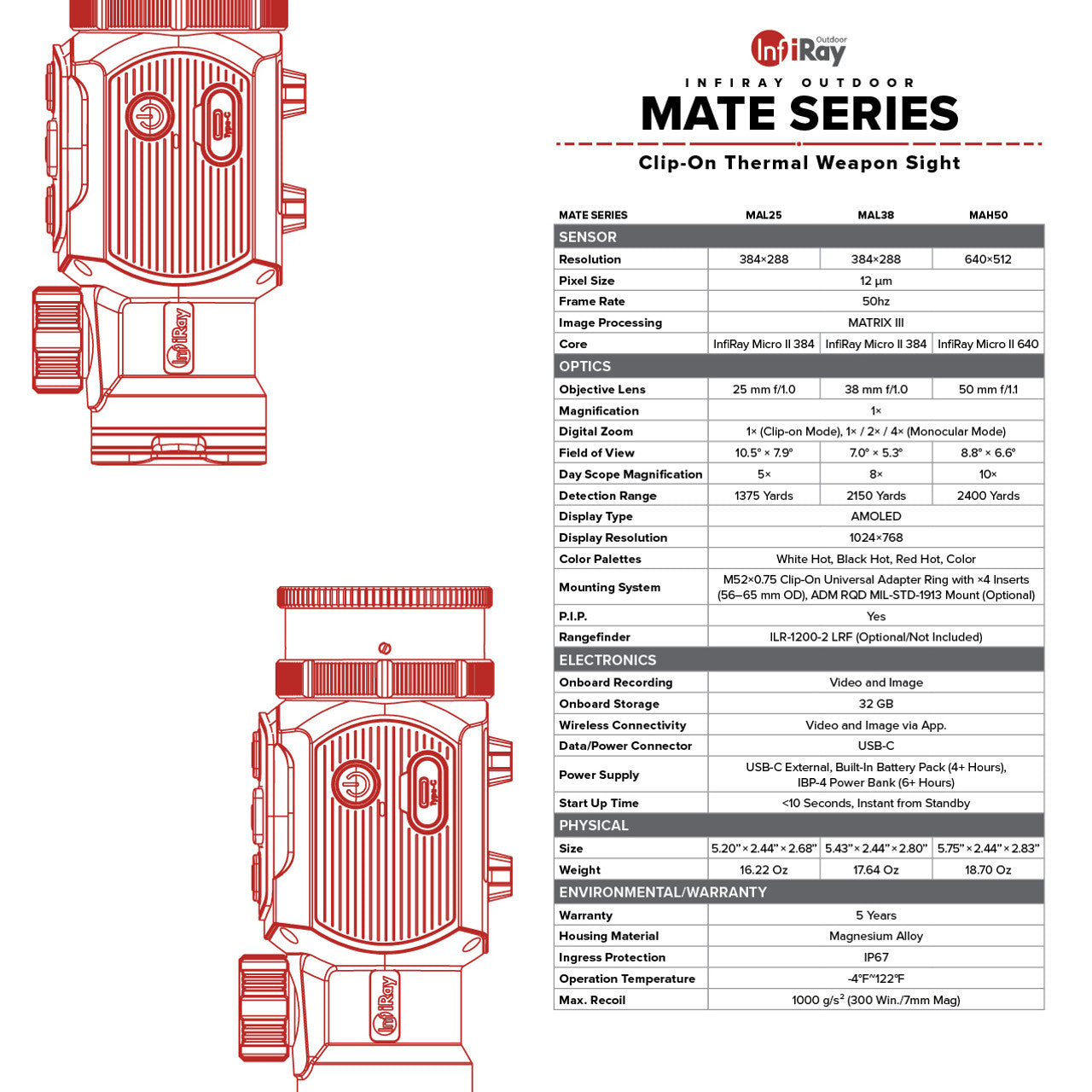

iRay MAH50 Features and Specifications

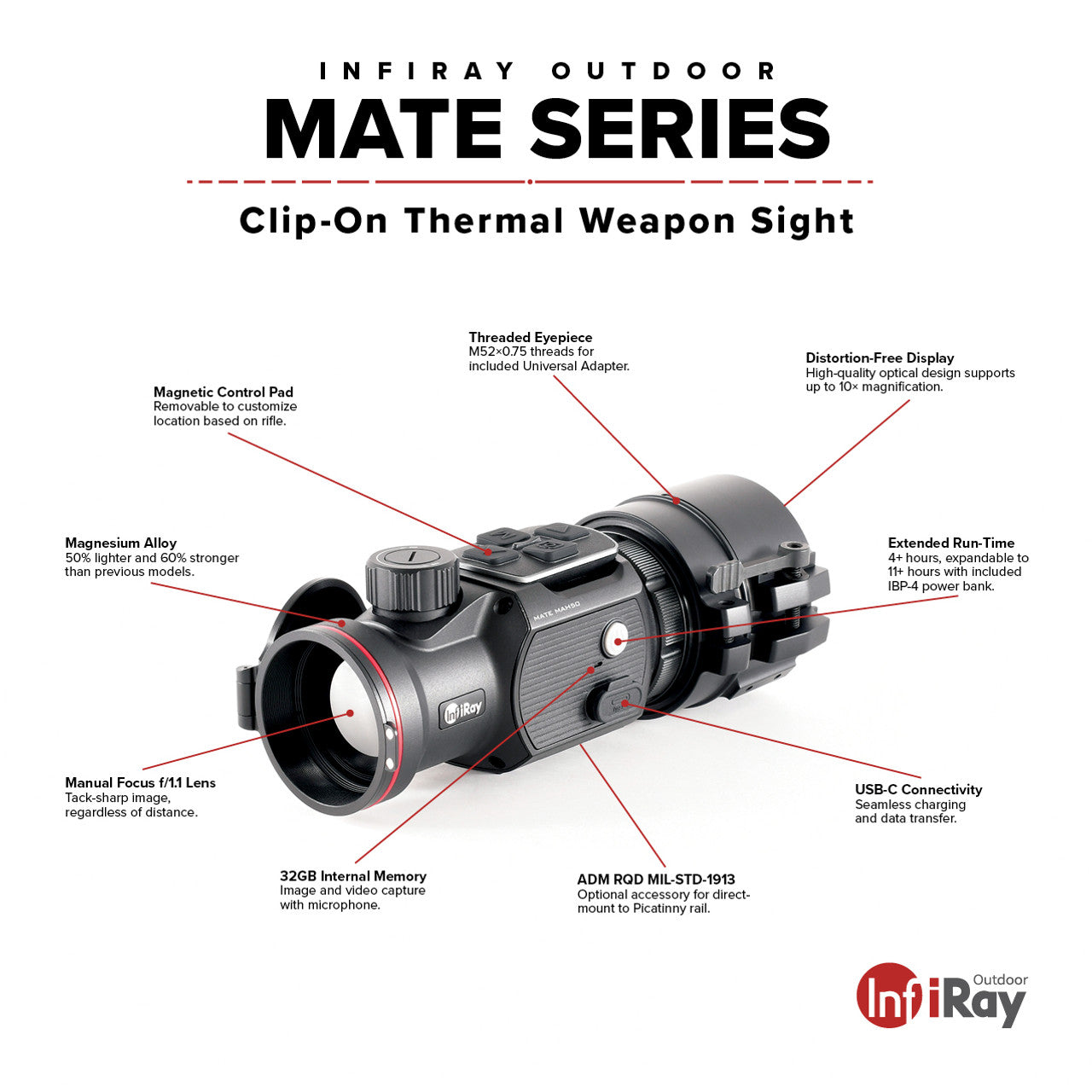

The iRay Mate MAH50 is a cutting-edge thermal clip-on device designed for seamless integration with daytime scopes, enhancing their capabilities for nighttime use. This device features a high-performance 12 μm detector housed in a robust magnesium alloy body, ensuring durability and precision. With a display resolution of 1024x768 and a detection range of 2400 yards, it offers unmatched visual clarity and long-distance detection. The MAH50 offers both optical and digital magnification, with a manual focus mechanism, and it operates efficiently even in harsh environments, thanks to its IP67 ingress protection and wide operating temperature range. Additionally, it includes onboard recording capabilities, multiple color palettes, and connectivity with a mobile app, ensuring users have a versatile and user-friendly experience.

iRay MAH50 Key Features:

• InfiRay Micro II sensor for high sensitivity and resolution
• Display resolution of 1024x768
• 50mm objective focal length made from Germanium
• Detection range up to 2400 yards
• Magnesium alloy housing for durability
• Built-in battery pack and optional power bank for extended use
• Wireless connectivity and mobile app compatibility
• IP67 rated for water and dust protection
• Suitable for harsh environments with an operational range of -4°F to 122°F
• User-updatable firmware for ongoing enhancements

What's in the box of the iRay MAH50?

• (1) iRay Mate MAH50 Thermal Clip-on Device
• (1) Built-In Battery Pack (provides operation for over 4 hours)
• (1) USB-C Cable for Power and Data
• (1) IBP-4 Power Bank (provides operation for over 6 hours)
• (1) Universal Adapter Ring with four Inserts (56–65 mm Outer Diameter)
• (1) User Manual
• (1) Optional ILR-1200-2 LRF Rangefinder (not included)

iRay MAH50 FAQs

What is the correct term for this thermal clip-on device, and why is it important to use the correct name?

The correct term for this product is the iRay Mate MAH50. While you might encounter incorrect terms such as InfiRay Mate MAH50, iRay Mate MAH 50, InfiRay MAH50, MAH50 Clip On, MAH50 InfiRay, and InfiRay Mate MAH50 Thermal Clip On, using the correct name is crucial for clarity and accuracy. It ensures that discussions, searches, and support inquiries lead to the right product, avoiding confusion with other similar products.

How does the MATE series ensure a distortion-free display?

The MATE series is engineered with a high-resolution AMOLED display and precision optics that work together to minimize distortion, providing a clear and accurate visual experience.

Can the iRay MAH50 be easily transitioned between different riflescopes?

Yes, the iRay MAH50 is designed with a universal adapter ring, making it simple to attach to a variety of riflescopes, ensuring ease of use and versatility.

What is the warranty period for the iRay MAH50?

The iRay MAH50 comes with a comprehensive 5-year warranty, covering manufacturing defects and offering peace of mind to users.

Is the iRay MAH50 resistant to harsh environmental conditions?

Yes, the iRay MAH50 features an IP67 ingress protection rating, making it resistant to dust, shock, and water ingress, which ensures reliability in extreme conditions.

Does the iRay MAH50 support different viewing modes for thermal imaging?

The iRay MAH50 offers multiple color palettes including White Hot, Black Hot, Red Hot, and Color, allowing users to customize their viewing experience according to their preferences and environmental conditions.
