iRay Rico Pro | Thermal Weapon Sight

• The InfiRay Rico Pro is an advanced dual field-of-view (FOV) thermal weapon sight that provides unmatched image quality.
• It features a patented dual FOV objective lens that allows users to switch seamlessly between a wide FOV for detection and a narrow FOV for target identification.
• The Rico Pro is easy to use, with an intuitive interface and an HD display for clear, bright images.
• It boasts a 6-hour runtime and an aluminum alloy housing for durability and longevity.
• With 32GB of internal memory, the Rico Pro allows for ample storage of captured images and videos.
• It is equipped with a Sensor Type InfiRay MICRO II that offers thermal imaging with a resolution of 640×512.
• The Rico Pro offers a variety of color palettes for users to choose from, including White Hot, Black Hot, Red Hot, Color, and Highlight.

iRay Rico Pro Review

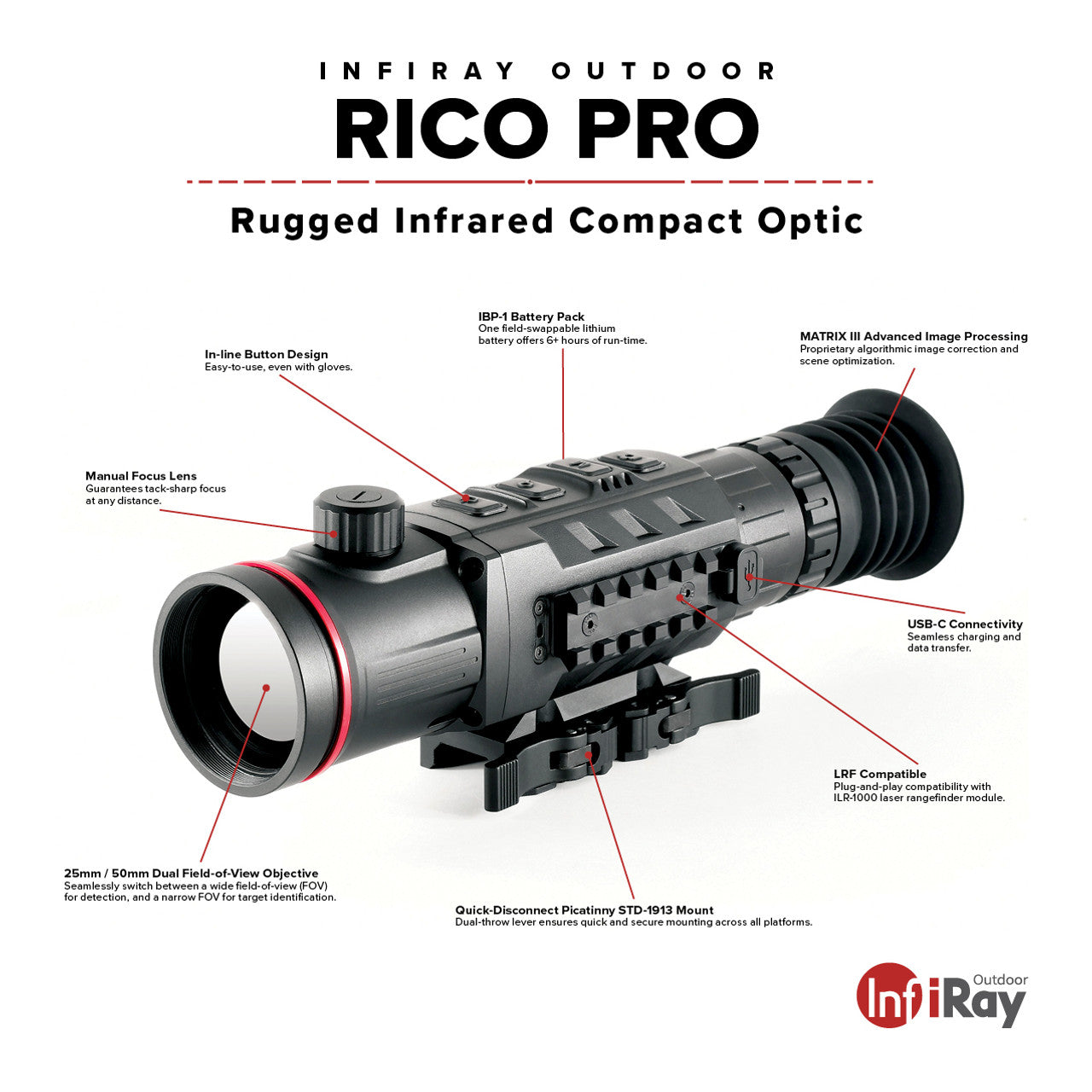

iRay Rico Pro Features

• Dual Field-of-View: The InfiRay Rico Pro offers a seamless switch between a wide field-of-view (FOV) for detection and a narrow FOV for target identification.
• High Resolution: The device boasts a high sensor resolution of 640x512, providing clear and detailed thermal images.
• Optimal Magnification: With its 25mm/50mm objective lens, it provides optical magnification of 1x/3x and digital zoom of 4x.
• Diverse Color Palettes: It offers multiple color palettes including White Hot, Black Hot, Red Hot, Color, and Highlight for a personalized viewing experience.
• Onboard Recording and Storage: The Rico Pro is capable of onboard recording and comes with 32GB of storage for video and image files.
• Quick Startup: The Rico Pro starts in less than 10 seconds and can resume from standby mode instantly.
• Robust Housing: The device is encased in durable aluminum and has an ingress protection rating of IP67, making it resistant to water and dust.
• Long Battery Life: The Rico Pro uses an IBP-1 Li-ion battery pack that provides over 6 hours of operation. An external power supply can be connected via USB-C.
• Connectivity: The device supports wireless connectivity, allowing users to view and share images and videos via a mobile application.
• Environmentally Resilient: With an operating temperature range of -4°F~122°F and a maximum recoil of 1000 g/s², the Rico Pro can endure harsh environmental and operational conditions.
• Extended Warranty: The device comes with a 5-year warranty, ensuring long-term service and support.

What's in the box of the iRay Rico Pro?

• InfiRay Rico Pro thermal weapon sight
• IBP-1 Li-ion Battery Pack
• USB-C Data/Power Connector
• Mounting system (Picatinny MIL-STD-1913 Rail)
• User manual

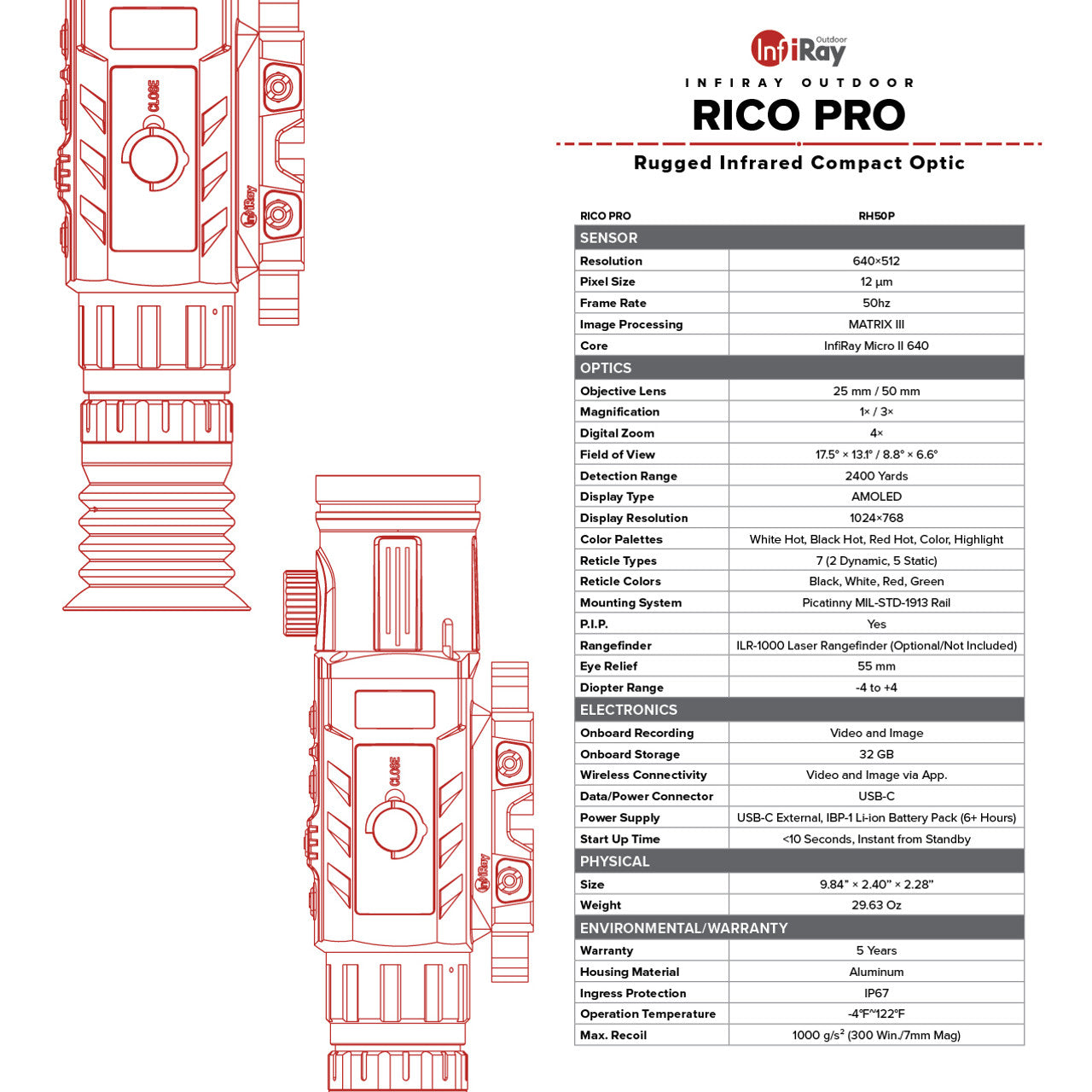

iRay Rico Pro Specifications

• Sensor Type: InfiRay MICRO II
• Device Technology: Thermal Imaging
• Sensor Resolution: 640×512
• Sensor Pixel Size: 12μm
• Thermal Sensitivity: <50mk
• Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
• Spectral Response: 8-12 Microns
• Sensor Frame Rate: 50hz
• Objective Focal Length: 25mm/50mm
• Detection Range: 2400 Yards
• Objective Lens Material: Germanium
• Optical Magnification: 1.5X / 3X
• Digital Magnification: 4X, stepped
• Focusing Mechanism: Manual Focus
• Display Type: AMOLED
• Objective Diameter: 25mm / 50mm
• Eye Relief: 55mm
• Diopter Range: -4 - +4
• Display Resolution: 1024×768
• Mobile App: Yes
• Wifi: Yes
• Image Capture: Yes
• Video Output: Analog RS-170/NTSC
• Connector Output: Power/Data
• Connector Type: USB-C
• Onboard Recording: Yes
• Warranty: 5 Years
• Reticle: 7 (2 Dynamic, 5 Static)
• Color Palettes: White Hot, Black Hot, Red Hot, Color, Highlight
• Picture-in-Picture: Yes
• User-Updatable Firmware: Yes
• One-Shot Zero: Yes
• Stand-by Mode: Yes
• Storage Capacity: 32GB
• Power Source: IBP-1 Battery Pack , 6+ Hours
• Startup Time: Under 10 Seconds
• External Power Source: USB-C
• Rangefinder: LR-1000 Laser Rangefinder (Optional/Not Included)
• Recoil Rating: 1000 g/s² (300 Win./7mm Mag)
• Operating Temperature Range: -4°F~122°F
• Ingress Protection: IP67
• Mounting Interface: Picatinny STD-1913 rail
• Housing Material: Aluminum
• Weight: 29.63
• Height: 2.28
• Width: 2.4
• Length: 9.84

iRay Rico Pro FAQs

What is the resolution of the iRay Rico Pro sensor?

The InfiRay Rico Pro features a high-resolution sensor with a resolution of 640x512 pixels.

What is the startup time for the iRay Rico Pro?

The startup time for the InfiRay Rico Pro is under ten seconds.

Does the InfiRay iRay Pro have onboard recording capabilities?

Yes, the InfiRay Rico Pro does have onboard recording capabilities. It allows for both video and image recording.

What type of mounting interface does the iRay Rico Pro 640 use?

The InfiRay Rico Pro uses a Picatinny STD-1913 rail mounting interface.

What is the power source for the iRay Rico Pro 640?

The power source for the InfiRay Rico Pro is an IBP-1 Battery Pack, which provides over 6 hours of operation.

What is the thermal sensitivity of the InfiRay Rico Pro?

The InfiRay Rico Pro has a thermal sensitivity of less than 50mk.

What kind of warranty does the InfiRay Rico Pro come with?

The InfiRay Rico Pro comes with a five-year warranty.
