This model has been discontinued. (Purchasing this product will now upgrade you for FREE to:

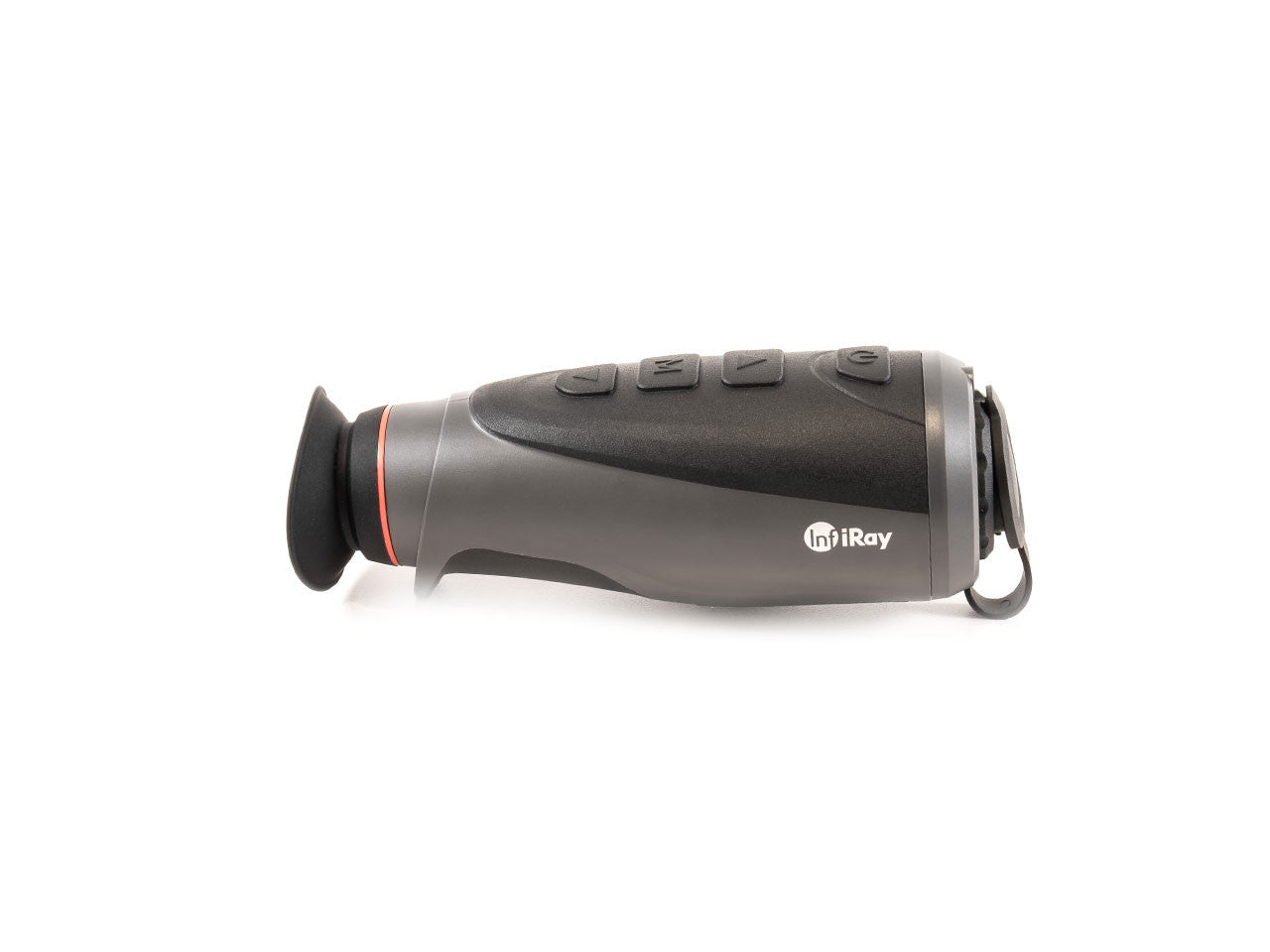

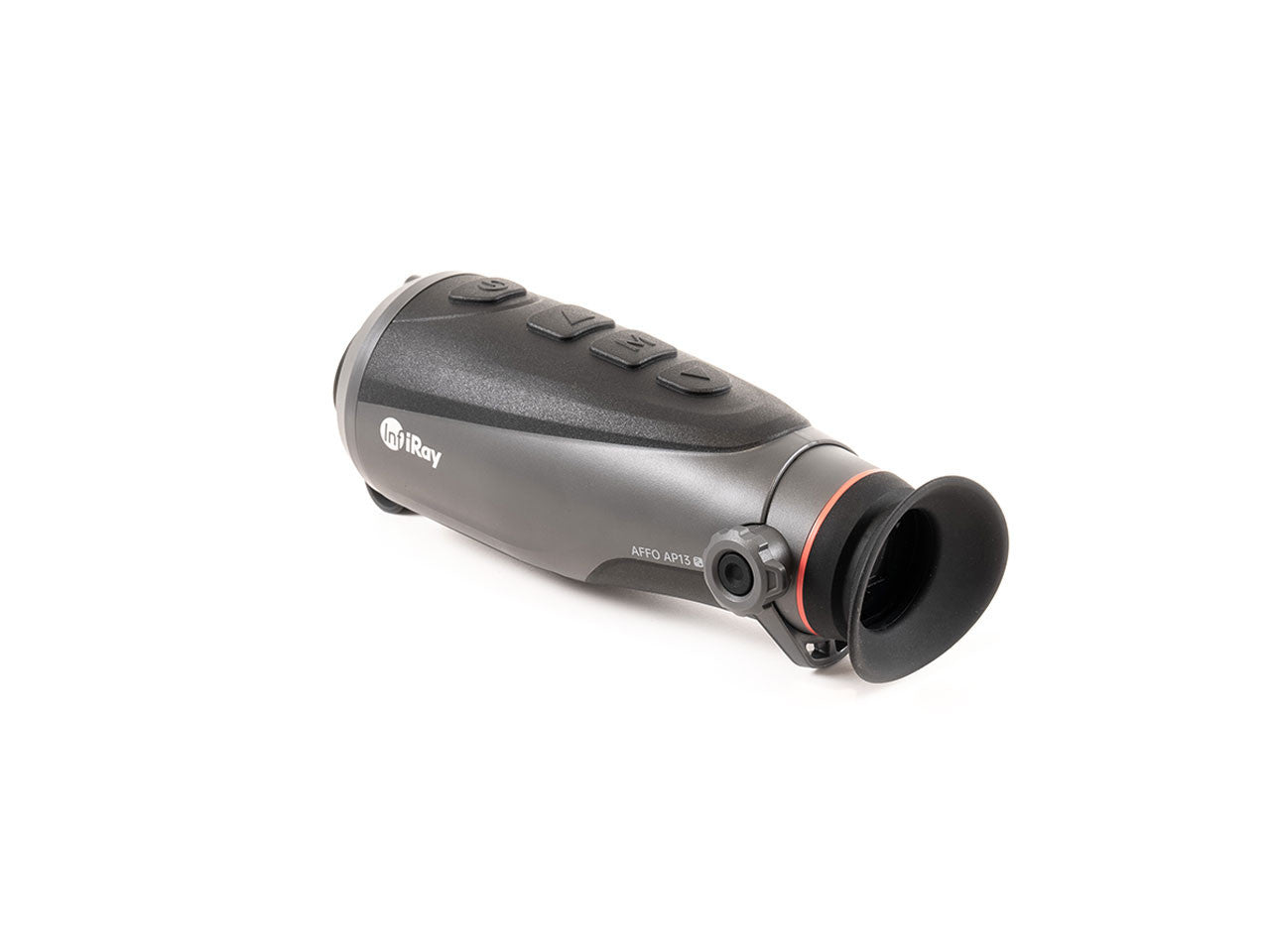

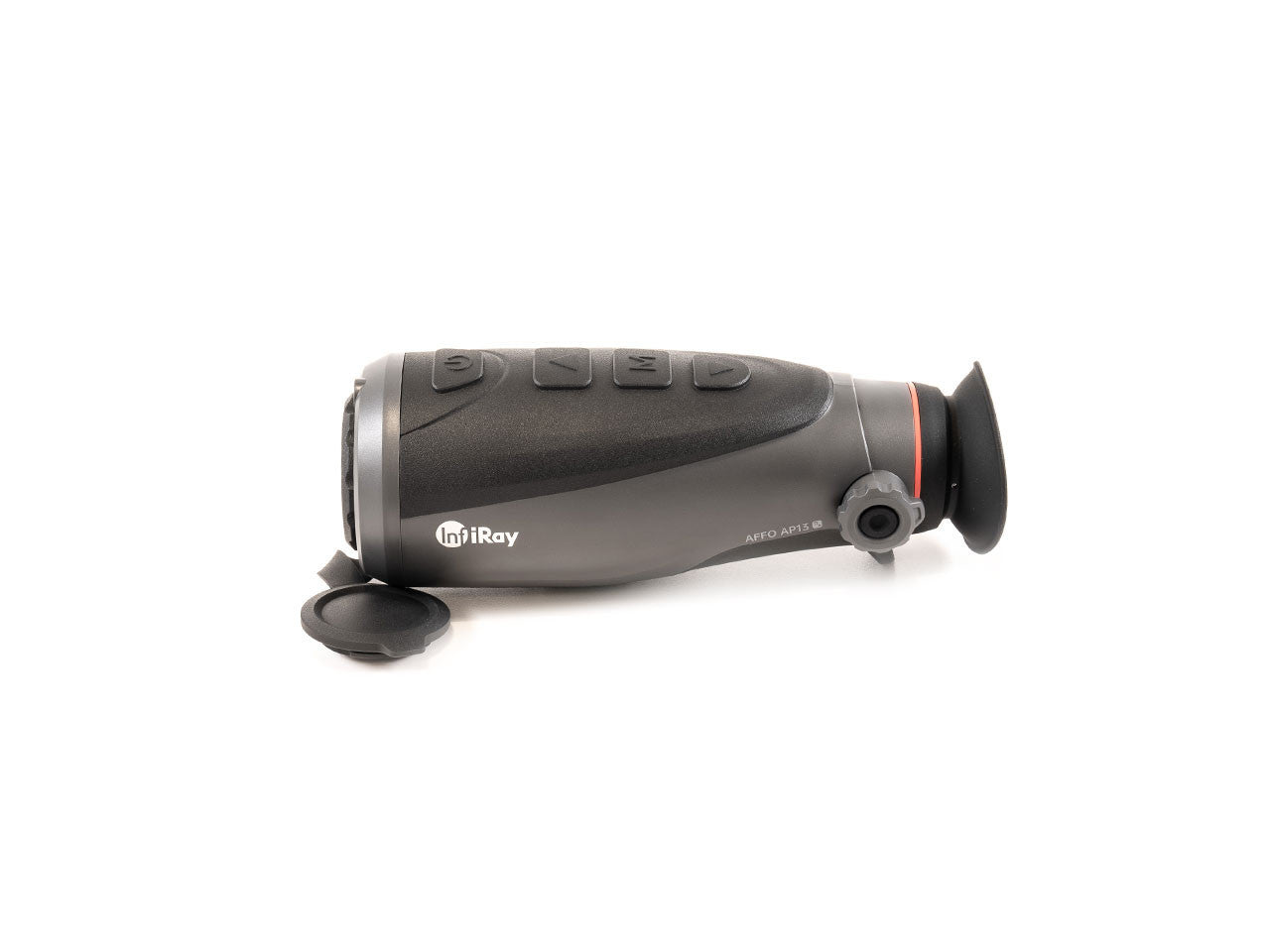

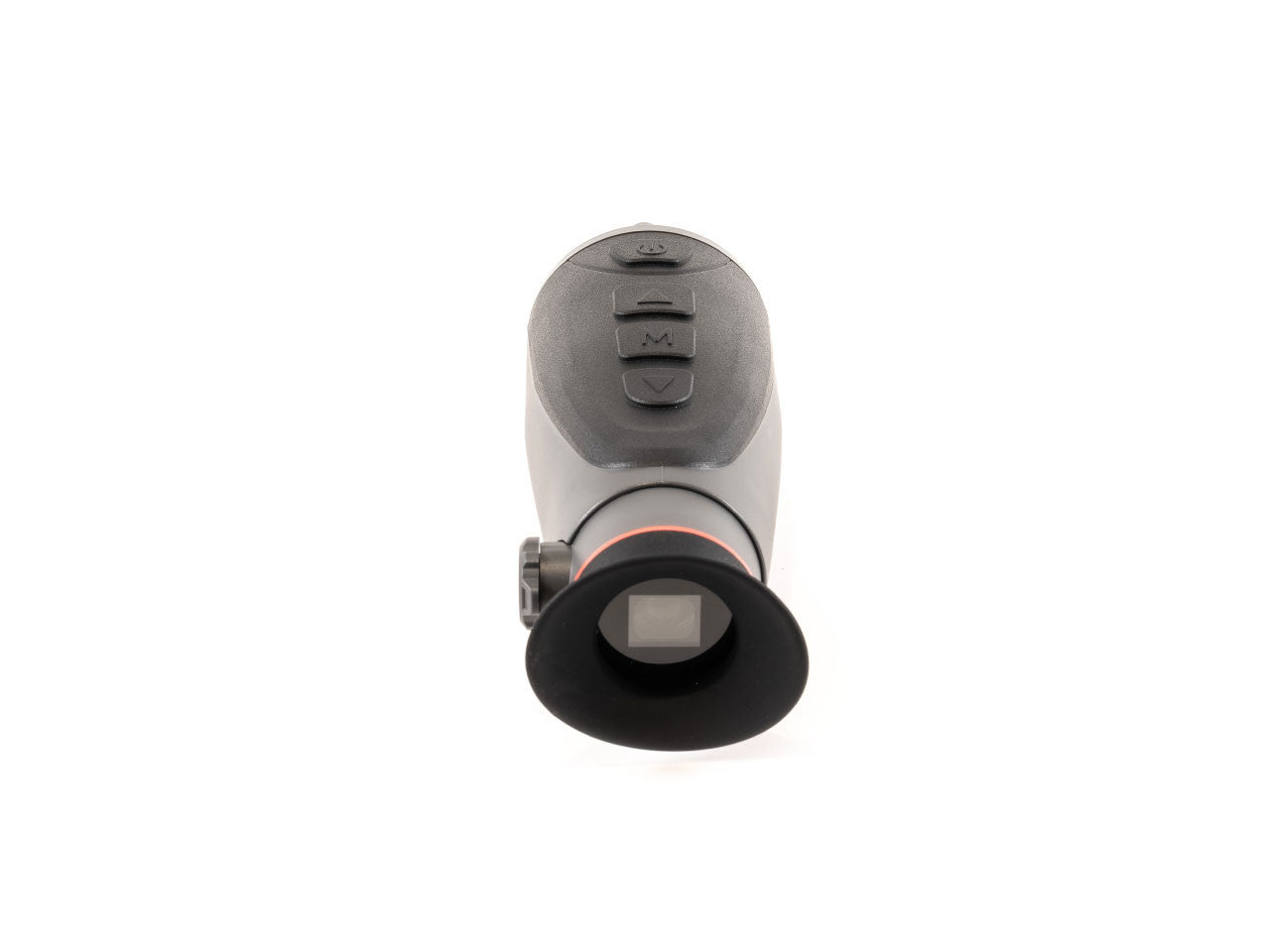

iRay AFFO | Thermal Monocular

• The iRay AFFO is an affordable, compact thermal imager designed for easy one-handed operation.
• Rugged yet lightweight, it is suitable for a variety of applications such as law enforcement, hunting, search and rescue, and security.
• The imager is powered by a high-performance 12µm sensor and uses Reality+ image processing for a clear, smooth viewing experience.
• Features include a built-in stadiametric rangefinder, a picture-in-picture function, hotspot tracking, internal recording, and a long 9+ hour run-time.
• The device can capture vivid, realistic photos and videos in any weather or lighting conditions.
• It has a fast startup time of under 10 seconds, a storage capacity of 8GB, and a 5-year warranty.
• The iRay AFFO is equipped with a USB-C connector for power/data output and can be updated with user-updatable firmware.

iRay AFFO Review

iRay AFFO Features

• Compact and lightweight design suitable for one-handed operation
• Ideal for various applications such as law enforcement, hunting, search and rescue, and security
• High-performance 12µm sensor for superior imaging
• Reality+ image processing technology for improved resolution and contrast
• User-friendly interface featuring a built-in stadiametric rangefinder
• Picture-in-picture function for enhanced viewing
• Hotspot tracking and internal recording capabilities
• Long battery life with over 9 hours of run-time
• Ability to capture vivid, realistic photos and videos in any weather or lighting conditions
• 5-Year warranty for customer peace of mind
• Quick startup time under 10 seconds
• Variety of color palettes: White Hot, Black Hot, Red Hot, Color, Highlight
• 8GB of storage capacity
• Mobile App support
• USB-C External power source and Built-In Battery Pack
• Stand-by Mode
• WiFi-enabled with onboard recording and image capture functionality
• Operates within a temperature range of -4°F~122°F
• Durable polymer housing material with an ingress protection rating of IP67
• Mounting interface of 1/4-20 dimensions.

What's in the box of the iRay AFFO?

• iRay AFFO R+ AP13 Thermal Monocular
• Built-in Battery Pack
• Data/Power Connector (USB-C)
• Onboard Storage (8 GB)
• User manual and warranty documentation
• Standby mode accessory

iRay AFFO Specifications

• Sensor Type: Reality+
• Sensor Resolution: 256x192
• Sensor Pixel Size: 12μm
• Thermal Sensitivity: <40mK
• Sensor Frame Rate: 25hz
• Display Type: AMOLED
• Display Resolution: 600×400
• Detection Range: 670 Yards
• Objective Focal Length: 13mm
• Digital Magnification: 4X, stepped
• Vertical Angular Field of View: 8.4°
• Horizontal Angular Field of View: 13.5°
• Objective Diameter: 13mm
• Objective Lens Material: Germanium
• Startup Time: Under 10 Seconds
• Storage Capacity: 8GB
• Power Source: USB-C External, Built-In Battery Pack
• Run Time: 9+
• Operating Temperature Range: -4°F~122°F
• Ingress Protection: IP67
• Weight: 12.0 Oz.
• Dimensions (Height x Width x Length): 2.36 x 2.36 x 6.29 inches
• Warranty: 5 Years

iRay AFFO FAQs.

What are the primary applications of the iRay AFFO series?

The iRay AFFO series is a versatile thermal imager suitable for various applications, including law enforcement, hunting, search and rescue, and security.

How does the Reality+ Image Processing work in the iRay AFFO series?

Reality+ Image Processing uses AI to extract multiple layers of partial features and merge them together to reconstruct an image. This process significantly improves the thermal image's resolution and contrast, making it more realistic and smoother.

What is the run time of the day AFFO series?

The iRay AFFO series has a run time of 9+ hours.

What type of sensor does the iRay AFFO series use?

The iRay AFFO series is powered by a high-performance 12µm sensor.

Is the iRay AFFO series suitable for use in all weather conditions?

Yes, the iRay AFFO series can capture vivid, realistic photos and videos in any weather or lighting conditions.
